AHV12V1KV20MAW
Analog Technologies
The Analog Technologies AHV12V1KV20MAW is a high voltage DC-DC converter module. It provides an output voltage up to 1kV from a 12V input.
| Category | |
| Manufacturer Name | |
| Output Voltage | |
| Storage Temperature | |
| Tape & Reel |

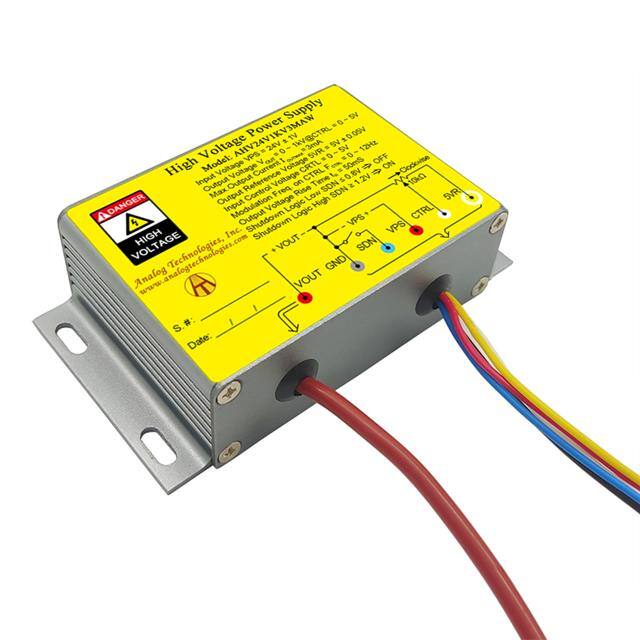

The Analog Technologies AHV24V1KV3MAW is a high-voltage, non-isolated DC-DC converter designed for applications requiring precise voltage conversion from a low-voltage source to a high-voltage output. It accepts an input power voltage of 24V ± 1V and can deliver an output voltage ranging from 0 to 1kV, controlled via an input voltage of 0 to 5V.
Key electrical specifications include an input current range of 35mA to 180mA and a maximum output current of 3mA. The module also provides a stable 5V ± 0.05V reference voltage. An electronic shutdown control feature is included for added functionality.
This power module is suitable for a variety of demanding applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation. Its ability to provide a modulated or constant high voltage makes it a versatile component in advanced electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage is 24V nominal.
The output voltage ranges from 0 to 1kV.
The maximum output current is 3mA.
The input current range is 35mA to 180mA.
The reference voltage is 5V.
Shutdown logic low at 0.8V and high at 1.2V.
