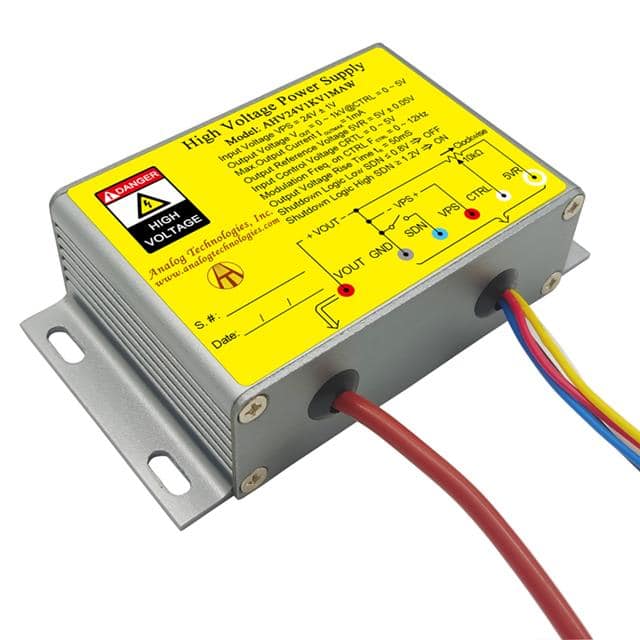

The Analog Technologies AHV24V1KV1MAW is a high voltage DC DC converter module designed for non-isolated power supply applications. It accepts an input voltage of 24V ± 1V and can deliver an output voltage ranging from 0V to 1kV, controlled by an input signal between 0V and 5V. The maximum output current is limited to 1mA.
This enclosed converter features a chassis mount type and operates within a temperature range of -10°C to 55°C. Its dimensions are 104.4mm in length, 66.8mm in width, and 27.9mm in height. The module offers electronic shutdown control and is designed for applications requiring precise high voltage generation.
Key electrical specifications include a reference voltage of 5V ± 0.05V and an input current range of 5mA to 60mA. The efficiency is rated at 70%. This power module is suitable for various industrial and scientific applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be set between 0V and 1kV.
The maximum output current is 1mA.
The input power voltage is 24V ± 1V, ranging from 23V to 25V.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
The operating temperature range is -10°C to 55°C.
It uses a chassis mount type.
