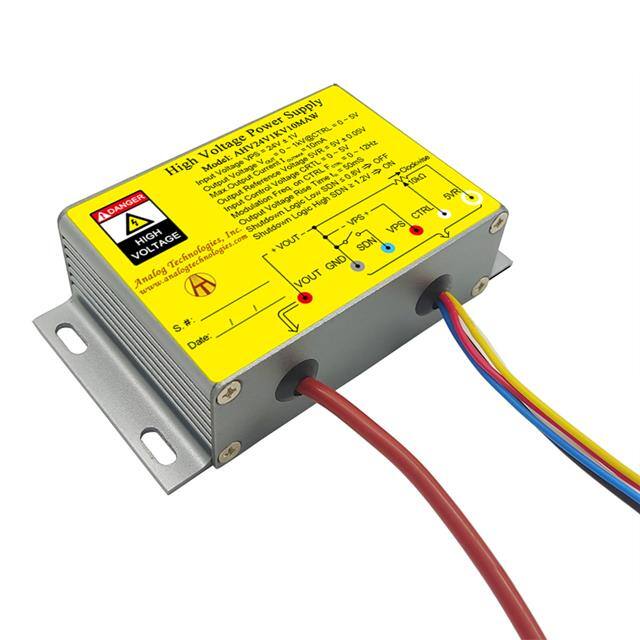

This Analog Technologies AHV24V1KV10MAW is a high voltage, non-isolated DC DC converter module. It is designed for DC-DC conversion from low voltage to high voltage, suitable for applications requiring up to 1kV output.
The module operates with an input voltage of 24V ± 1V and has an input current range of 140mA to 600mA. The output voltage can be precisely controlled from 0V to 1kV using an input control voltage ranging from 0V to 5V, with the output voltage being 200 times the input control voltage (VOUT = 200 * VCTRL). The maximum output current is 10mA.
Key features include full span modulation on the output voltage and electronic shutdown control. The operating temperature range is -10°C to 55°C. This converter has an efficiency of 75% and is rated for ITE (Commercial) applications.
Designed for chassis mounting, the AHV24V1KV10MAW has dimensions of 104.4mm x 59.9mm x 27.9mm. It is an enclosed type unit, providing a robust solution for demanding high voltage power supply needs in scientific research and industrial equipment.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage range is 0V to 1kV.
The maximum output current is 10mA.
The input voltage is 24V ± 1V.
The output voltage is controlled by an input control voltage ranging from 0V to 5V, where VOUT = 200 * VCTRL.
The operating temperature range is -10°C to 55°C.
It supports chassis mount.
