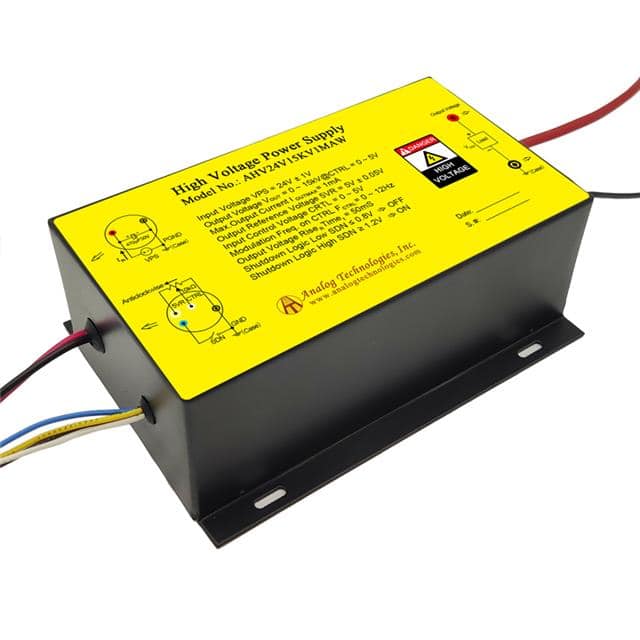

The Analog Technologies AHV24V15KV1MAW is a high voltage DC DC converter module. It operates with an input power voltage of 24V ± 1V and an input current range of 140mA to 800mA. The module is capable of delivering an output voltage from 0 to 15kV, controlled via a 0 to 5V input control voltage. It has a maximum output current of 1mA and a monitor voltage range of 0 to 1.5V. The reference voltage is 5V ± 0.05V, and the efficiency is rated at 75%.
This power module is designed for DC-DC conversion from low voltage to high voltage. Its applications include X-ray machines, spectral analysis, nondestructive inspection, semiconductor manufacturing equipment, CRT monitor testing, particle accelerators, and more. The unit is enclosed and designed for chassis mounting. It operates within a temperature range of -10°C to 55°C. The dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage is 24V ± 1V.
The maximum output voltage is 15kV.
The maximum output current is 1mA.
The operating temperature range is -10°C to 55°C.
This is an enclosed converter designed for chassis mounting.
