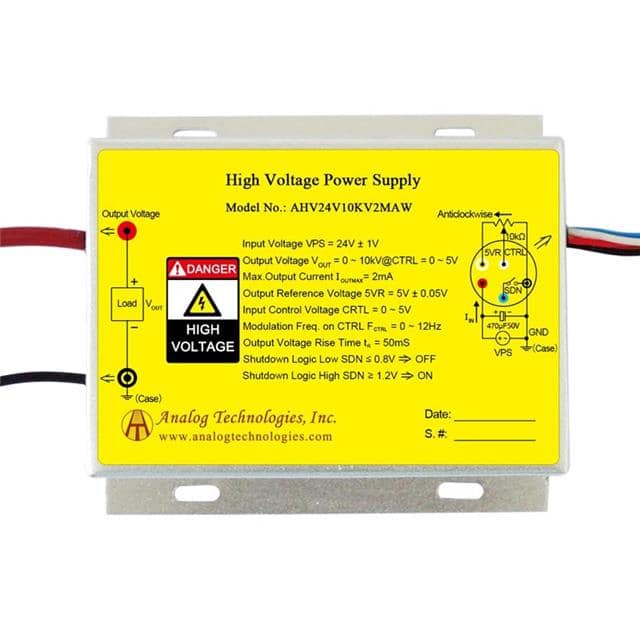

The Analog Technologies AHV24V10KV2MAW is a high voltage DC DC converter module designed for applications requiring non-isolated, low voltage to high voltage conversion. It operates with an input voltage of 24V ± 1V and can deliver an output voltage ranging from 0 to 10kV, with a maximum output current of 2mA. The module features an input control voltage range of 0 to 5V and includes electronic shutdown control.
With an efficiency of 70% and an operating temperature range of -20°C to 55°C, this converter is suitable for various industrial environments. Its physical dimensions are 100.0mm x 70.0mm x 30.0mm, and it is designed for chassis mounting. The enclosed type provides protection and facilitates integration into systems.
Applications for this power module include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning. Its ability to generate high DC voltages makes it a versatile component for specialized electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage range is 0 to 10kV when the control voltage is between 0V and 5V.
The input power voltage is 24V ± 1V.
The maximum output current is 2mA.
The operating temperature range is -20°C to 55°C.
It is a chassis mount type.
