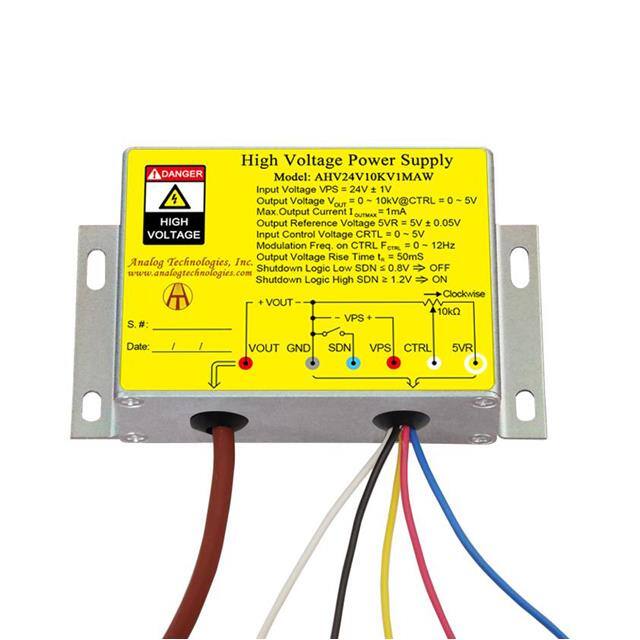

The Analog Technologies AHV24V10KV1MAW is a high voltage, non-isolated DC DC converter module. It is designed for applications requiring a conversion from a low input voltage to a high output voltage.
Key electrical specifications include an input voltage range of 23V to 25V (typically 24V) and an input current range of 140mA to 600mA. The module offers an adjustable output voltage from 0 to 10kV, with a maximum output current of 1mA. The output voltage is controlled via an input control voltage ranging from 0 to 5V, following the relationship VOUT = 2000 x VCTRL. A reference voltage of 5V is also provided.
This converter operates within a temperature range of -10°C to 55°C. It features electronic shutdown control and is housed in a metal enclosure, which provides good heat sinking and zero EMI.
The AHV24V10KV1MAW is suitable for chassis mounting and is designed for use in various scientific research and industrial fields, including X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 23V to 25V, with a typical value of 24V.
The maximum output voltage is 10kV, and the maximum output current is 1mA.
The output voltage is controlled by an input control voltage ranging from 0 to 5V, where VOUT = 2000 x VCTRL.
The operating temperature range is -10°C to 55°C.
This converter supports chassis mounting.
