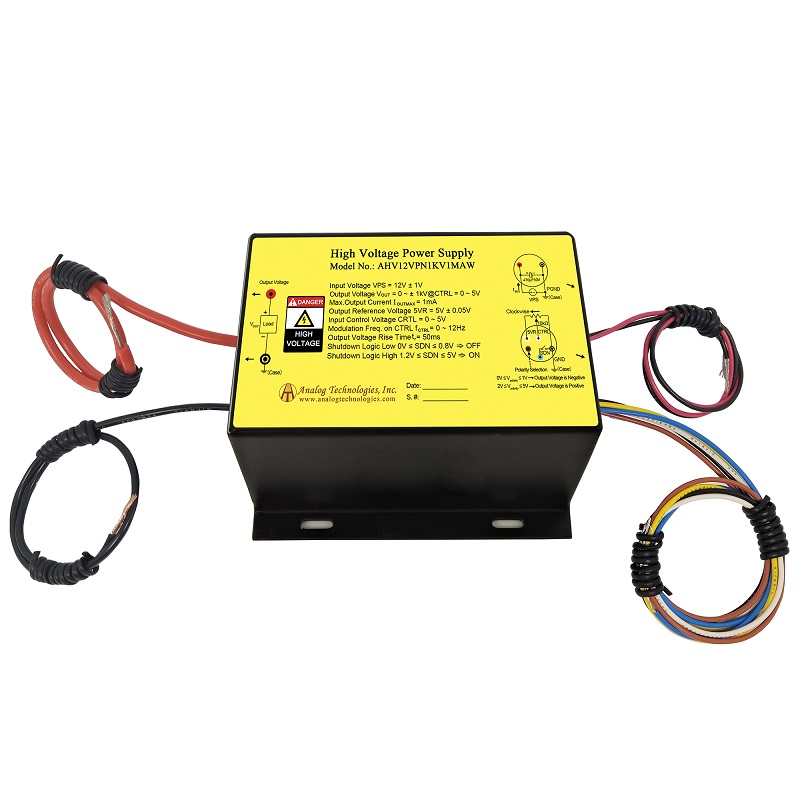

The AHV12VPN1KV1MAW from Analog Technologies is a high voltage power supply module engineered for DC-DC conversion applications. It accepts an input power voltage of 12V ± 1V and can deliver an output voltage ranging from 0 to ±1kV, controlled via an input control voltage of 0 to 5V. The maximum output current is limited to 1mA, with a reference voltage of 5V ± 0.05V.
This power module features full-span modulation on the output voltage and includes electronic shutdown control. Its design is suitable for demanding applications requiring precise high voltage generation.
Applications for the AHV12VPN1KV1MAW include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and physical vapor phase deposition. The output voltage polarity can be selected based on the input voltage applied to the voltage polarity selection pin.
Key electrical specifications include an input current range of 20mA to 120mA. The module is designed for reliable operation within specified parameters, facilitating its use in industrial, agricultural, national defense, and scientific research fields.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage range is 0 to ±1kV.
The input power voltage is 12V ± 1V.
The maximum output current is 1mA.
The input control voltage range is 0 to 5V.
Applications include X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
