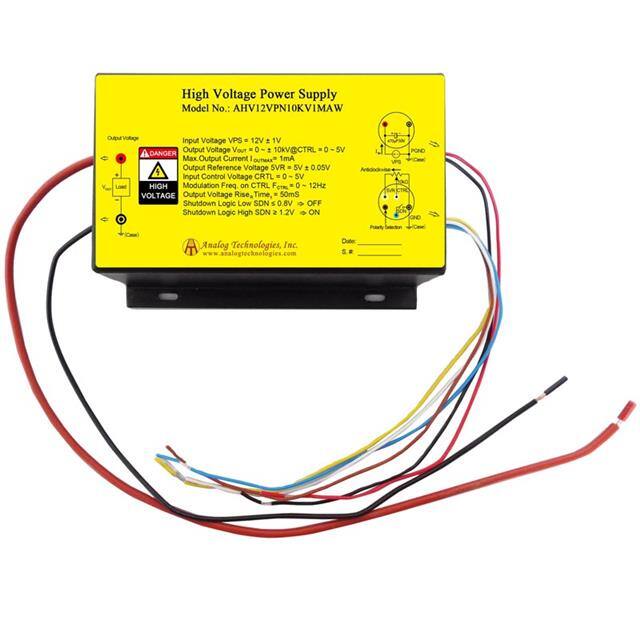

The Analog Technologies AHV12VPN10KV1MAW is a high voltage DC-DC power supply module designed for converting low voltage to high voltage. It operates with an input voltage of 12V ± 1V and can deliver an output voltage ranging from 0 to ±10kV, controlled via an input control voltage of 0 to 5V. The maximum output current is limited to 1mA.
Key features include full span modulation on the output voltage, electronic shutdown control, and a reference voltage of 5V ± 0.05V specifically for potentiometer adjustment. The module boasts an efficiency of over 70% at full load and can operate with its surface temperature maintained below 55°C, though enhanced heat dissipation is recommended for optimal performance and longevity.
This power supply is suitable for various applications requiring high voltage, such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation. Its design allows for linear regulation and provides zero EMIs with good heat sinking capabilities due to its metal enclosure.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input power voltage is 12V ± 1V.
The output voltage can range from 0 to ±10kV, with a maximum output current of 1mA.
The output voltage is controlled by an input control voltage ranging from 0 to 5V.
The reference voltage is 5V ± 0.05V and is intended for powering a potentiometer to adjust the high-voltage output.
The efficiency is greater than 70% at full load.
The module's surface temperature should be maintained below 55°C.
