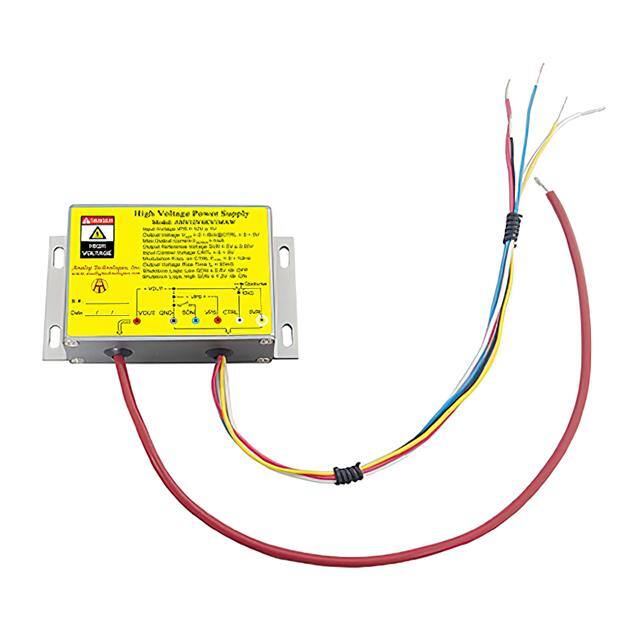

The Analog Technologies AHV12VN8KV1MAW is a high voltage DC DC converter module designed for applications requiring a conversion from low voltage to high voltage. This enclosed unit features a chassis mount for secure installation.
Key electrical specifications include an input power voltage range of 11V to 13V, with a typical input current between 190mA and 950mA. The module can deliver an output voltage from 0V to -8kV, controlled by an input control voltage of 0 to 5V. The maximum output current is limited to 1mA. A reference voltage of 5V ± 0.05V is also provided.
The converter operates within an ambient temperature range of -10°C to 55°C and has an efficiency of 70%. Its physical dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
Applications for this power module include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
