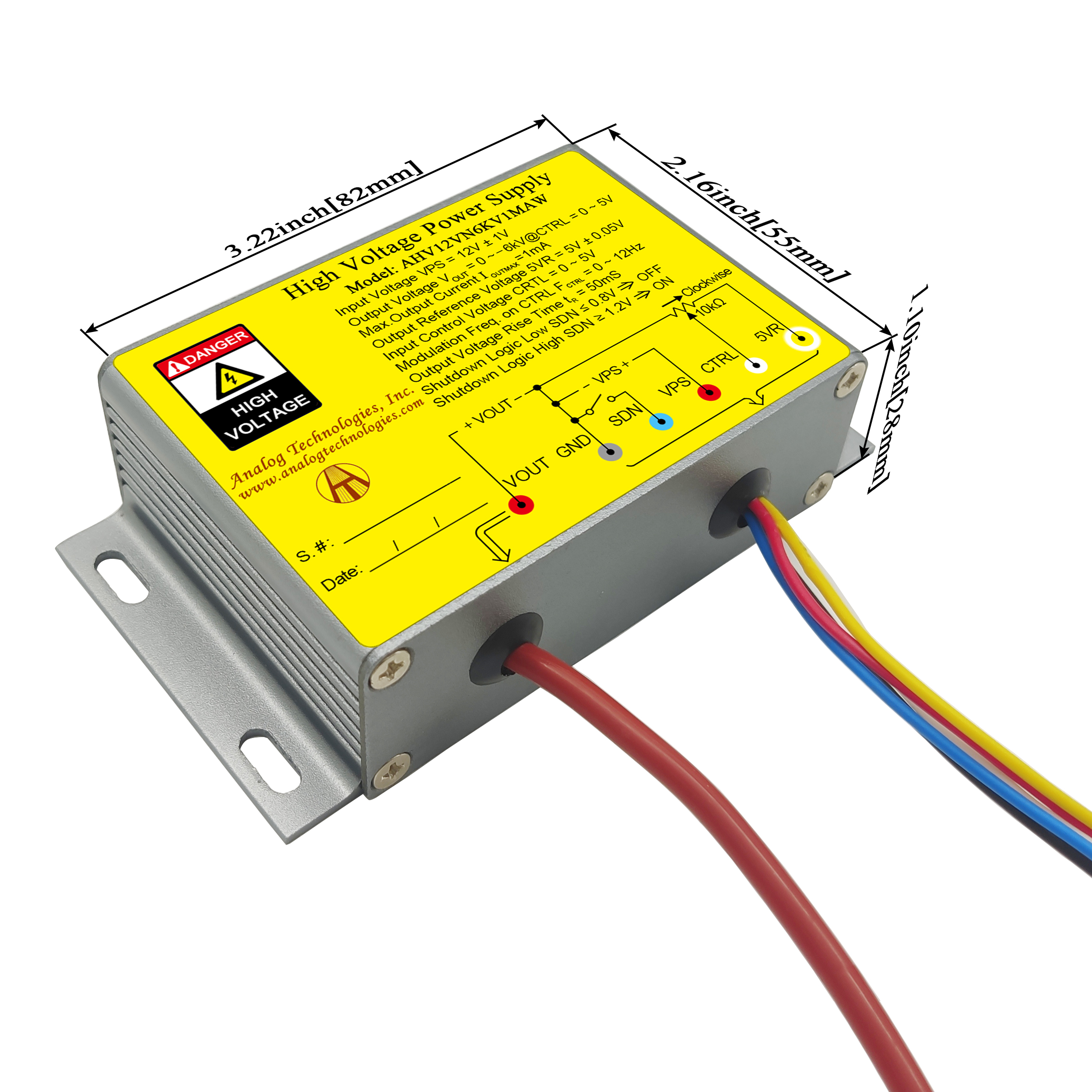

This Analog Technologies AHV12VN6KV1MAW is a high voltage DC DC converter designed for applications requiring non-isolated, high voltage outputs. It features a precise output voltage of 6kV and a maximum output current of 1mA, suitable for specialized electronic systems.
The converter operates efficiently with an input voltage range of 11V to 13V, achieving over 70% efficiency at full load. It is designed for chassis mounting and comes in an enclosed type, facilitating integration into various equipment.
The operating temperature range is from -10°C to 55°C, ensuring reliable performance in moderate environmental conditions. The unit has a single output and is designed for ITE (Commercial) applications.
Key specifications include a length of 104.4mm, width of 59.9mm, and height of 27.9mm. The product is RoHS3 Compliant, has an MSL of 1, and is REACH Unaffected.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage is 6kV.
The input voltage range is 11V to 13V.
The maximum output current is 1mA.
The operating temperature range is -10°C to 55°C.
It uses chassis mount.
