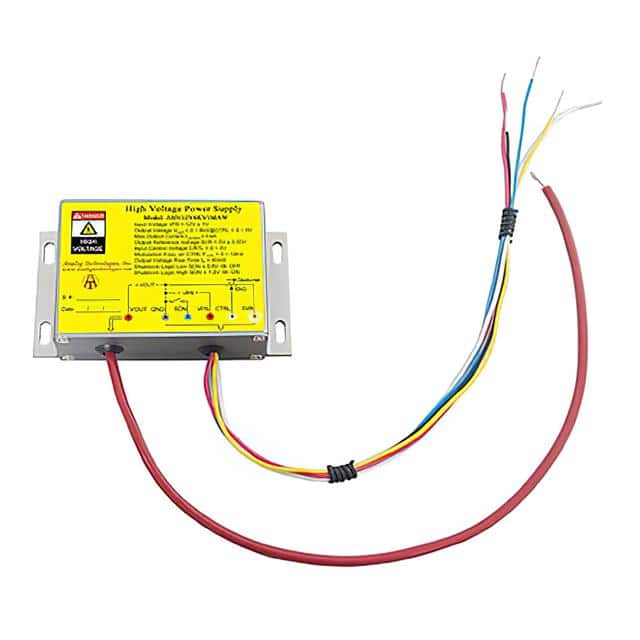

The Analog Technologies AHV12VN3KV5MAW is an enclosed, chassis mount high voltage power supply module. It is designed for DC-DC conversion from low voltage to high voltage, providing an output voltage from 0 to -3kV, adjustable via a 0-5V control input. The module operates with an input voltage range of 11V to 13V and has a maximum output current of 5mA. It features electronic shutdown control and zero EMI emissions due to its metal enclosure, which also aids in heat sinking.
Key electrical specifications include a reference voltage of 5V ± 0.05V and an input current range of 400mA to 1.8A. The efficiency is rated at 70%. Mechanically, the unit measures 104.4mm in length, 59.9mm in width, and 27.9mm in height. It is designed for operation in temperatures ranging from -10°C to 55°C.
This power module is suitable for various applications including X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
