| Category | |
| Manufacturer Name | |
| Applications | |
| Current | |
| Efficiency | |
| Height | |
| Length | |
| Mounting Type | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Type | |
| Voltage | |
| Width |

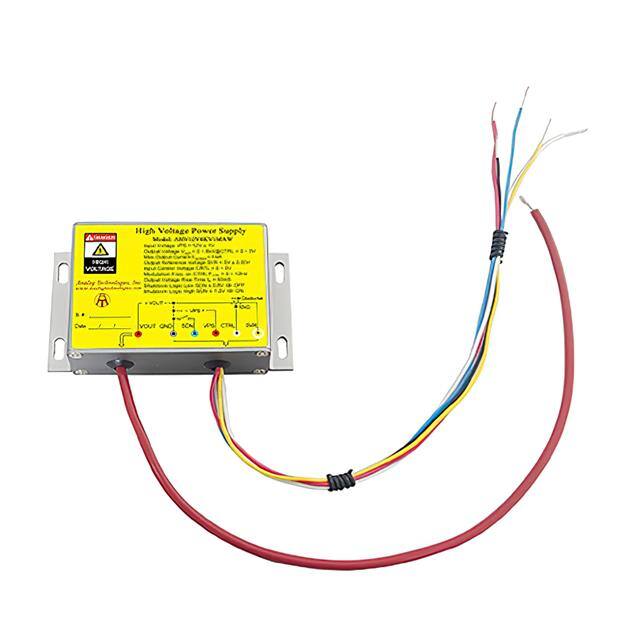

The Analog Technologies AHV12VN1KV5MAW is a high voltage DC-DC converter module designed for applications requiring conversion from low voltage to high voltage. This enclosed unit features a chassis mount for easy integration into systems.
Key electrical specifications include an input voltage range of 11V to 13V, with a typical input voltage of 12V. The module can handle an input current range from 140mA to 600mA. It offers a single output with a maximum current of 5mA and an adjustable output voltage from 0V to -1kV, controlled via an input control voltage range of 0V to 5V. The output voltage is directly proportional to the control voltage, with a ratio of 200:1 (VOUT = 200 * VCTRL).
Operating within a temperature range of -10°C to 55°C, the AHV12VN1KV5MAW has an efficiency of 70%. Its physical dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height. The unit is designed with zero EMIs and good heat sinking due to its metal enclosure.
This power module is suitable for various applications including X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V.
The maximum output voltage is -1kV.
The maximum output current is 5mA.
The efficiency is approximately 70%.
The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
The operating temperature range is from -10°C to 55°C.
