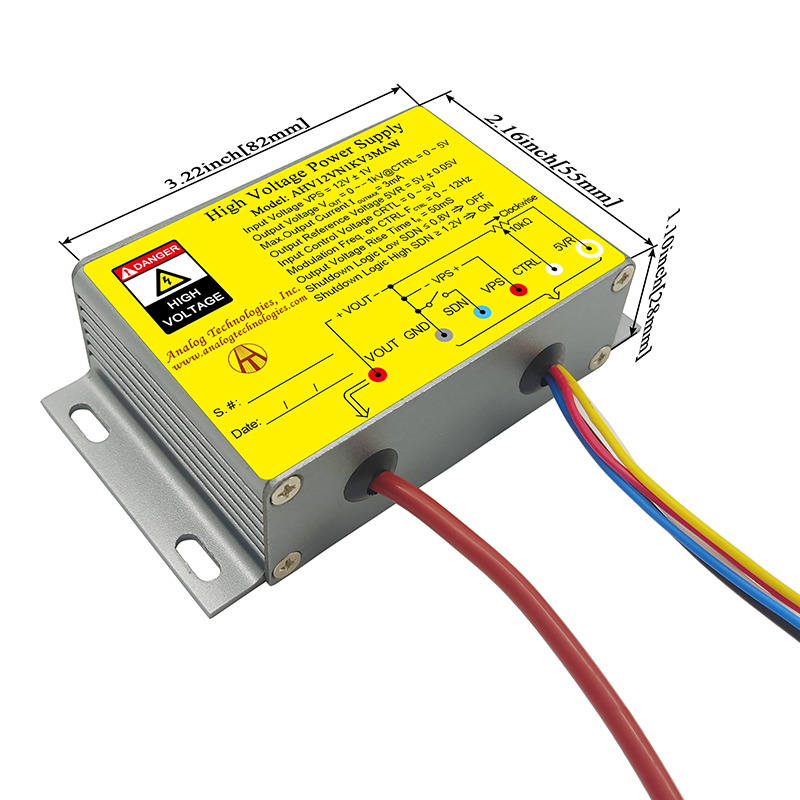

This Analog Technologies AHV12VN1KV3MAW is a high voltage DC DC converter designed for applications requiring non-isolated power conversion. It features a precise output voltage of 500V and can deliver up to 3mA of current.
The converter operates with an input voltage range of 11V to 13V and boasts an efficiency of over 70% at full load. It includes an input control voltage range of 0-5V and a control voltage range at the VTRL port of 0-5V, allowing for modulation of the output voltage.
Designed for chassis mounting, this enclosed unit has dimensions of 104.4mm x 59.9mm x 27.9mm. The operating temperature range is from -10°C to 55°C. The high voltage output can be set by connecting a control lead to a potentiometer's central tap or modulated by an AC signal.
While this power supply operates efficiently without external heat sinking, mounting on a metal plate with robust thermal connection and ensuring proper ventilation is advisable to maintain performance and longevity.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AHV12VN1KV3MAW has an output voltage of 500V.
The maximum output current for the AHV12VN1KV3MAW is 3mA.
The input voltage range for this converter is 11V to 13V.
The efficiency is greater than 70% at full load.
The high voltage output can be set by connecting the CTRL lead to a POT's central tap or modulated by an AC signal ranging from 0V to 5V.
The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
The operating temperature range is -10°C to 55°C.
