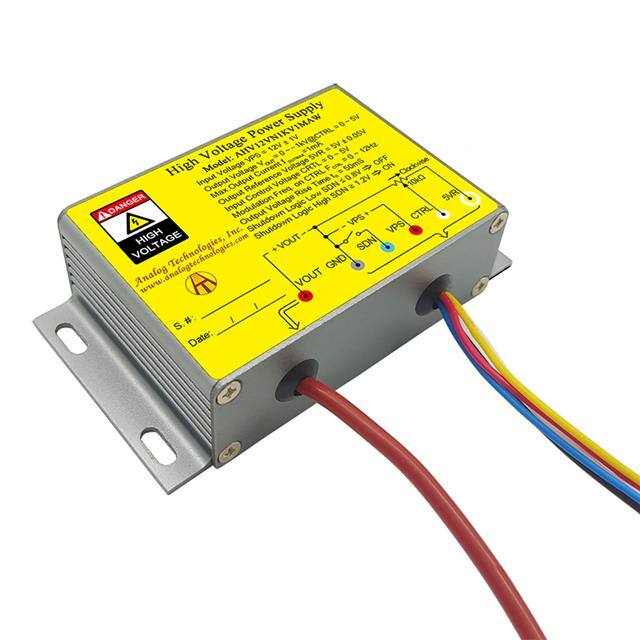

The Analog Technologies AHV12VN1KV1MAW is a high voltage, non-isolated DC-DC converter module. It is designed to convert a low input voltage to a high output voltage, making it suitable for specialized applications.
The module operates with an input voltage range of 11V to 13V and accepts an input current between 20mA and 120mA. It offers a programmable output voltage from 0V to -1kV, controlled via an input control voltage of 0V to 5V. The maximum output current is limited to 1mA. The reference voltage is 5V ± 0.05V.
With an efficiency of 70%, the AHV12VN1KV1MAW operates within an ambient temperature range of -10°C to 55°C. It is enclosed in a metal housing, providing zero EMI and good heat sinking. The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
This power module is suitable for applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V.
The maximum output voltage is -1kV, and the maximum output current is 1mA.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
The operating temperature range is -10°C to 55°C.
The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
It requires chassis mounting.
