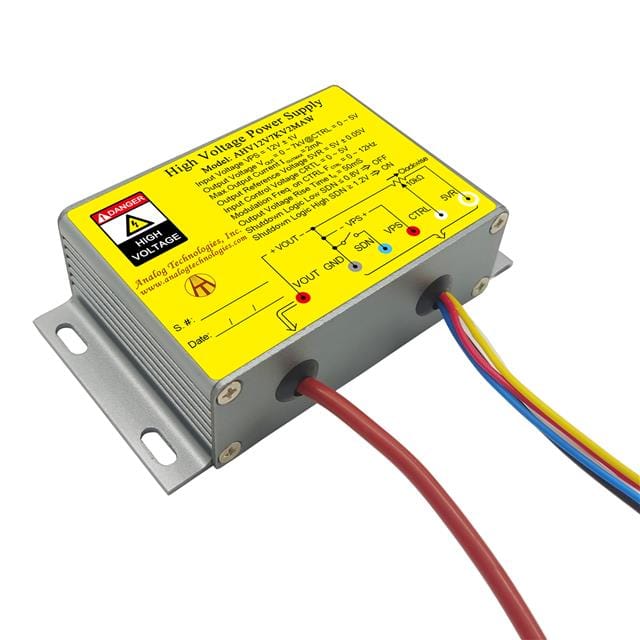

The Analog Technologies AHV12V7KV2MAW is an enclosed, chassis mount DC DC converter designed for high voltage applications. It accepts an input power voltage of 12V ± 1V and can deliver an output voltage ranging from 0 to 7kV, controlled by an input voltage between 0V and 5V. The maximum output current is limited to 2mA.
This power module is suitable for applications requiring DC-DC conversion from low voltage to high voltage. Its features include electronic shutdown control, zero EMIs, and good heat sinking due to its metal enclosure. The operating temperature range is -10°C to 55°C.
Key electrical specifications include an input current range of 350mA to 1.6A and a reference voltage of 5V ± 0.05V. The efficiency is rated at 75%. The physical dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
Applications for this high voltage power supply include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The output voltage can be set between 0V and 7kV.
The input power voltage is 12V ± 1V.
The maximum output current is 2mA.
The operating temperature range is -10°C to 55°C.
The output voltage is controlled by an input control voltage ranging from 0V to 5V, where VOUT = 1400 * VCTRL.
The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
