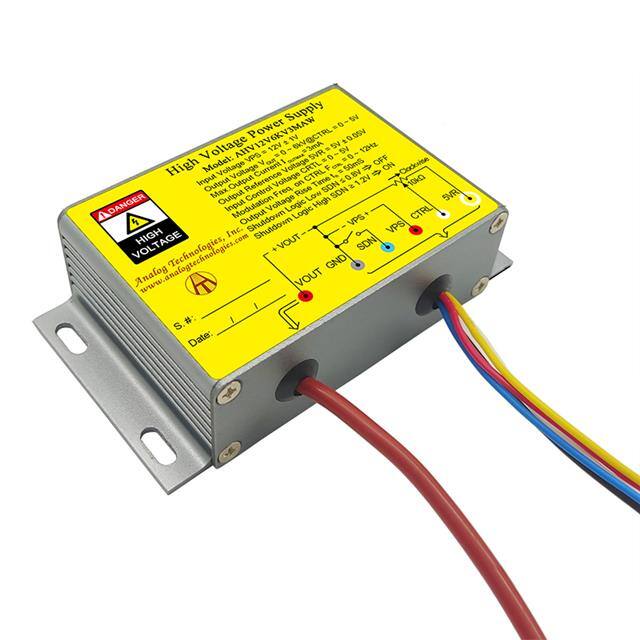

The Analog Technologies AHV12V6KV3MAW is an enclosed, chassis mountable high voltage power supply module designed for DC-DC conversion from low voltage to high voltage. It features an input power voltage of 12V ± 1V and an input current range of 475mA to 2.1A. The module can deliver an output voltage from 0 to 6kV, with a maximum output current of 3mA. The output voltage is regulated by an input control voltage ranging from 0 to 5V, following the formula VOUT = 1200 × VCTRL.
Key electrical specifications include a reference voltage of 5V ± 0.05V and an efficiency of 70%. The operating temperature range is -10°C to 55°C. The physical dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
This power module is suitable for applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation. It offers electronic shutdown control and features a metal enclosure for zero EMIs and good heat sinking.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 11V to 13V.
The maximum output voltage is 6kV.
The maximum output current is 3mA.
The efficiency is approximately 70%.
The operating temperature range is -10°C to 55°C.
Yes, it is RoHS3 compliant.
