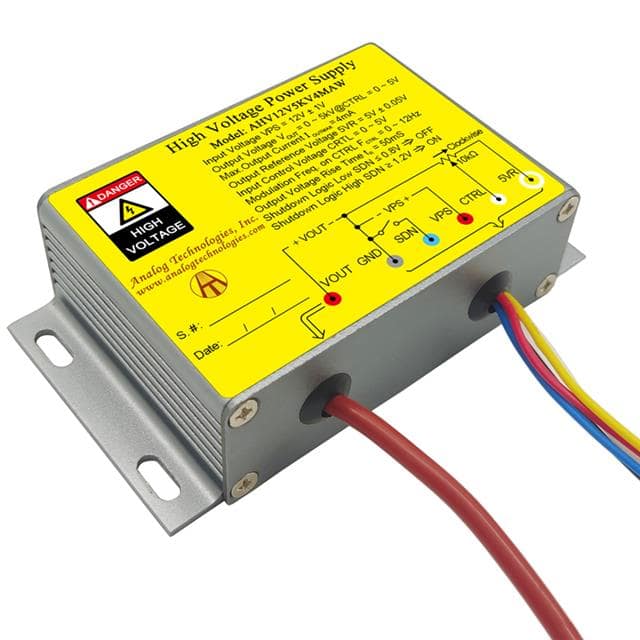

The Analog Technologies AHV12V5KV4MAW is a high voltage DC-DC power supply module designed for converting low voltage to high voltage. It operates with an input voltage range of 11V to 13V, typically 12V, and accepts an input current between 550mA and 2.4A.
The module offers a highly precise output voltage that can be set from 0V to 5kV by adjusting the input control voltage from 0 to 5V. The maximum output current is limited to 4mA. A reference voltage of 5V ± 0.05V is available for external potentiometer use to set the output voltage. Electronic shutdown control is also integrated.
Designed with a metal enclosure, this power supply provides zero EMI and good heat sinking capabilities. It is suitable for applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators. The output voltage is linearly regulated and can be modulated by an AC signal.
Key electrical specifications include a 12V input, 0-5kV adjustable output, and a maximum output current of 4mA. The control voltage input ranges from 0-5V, and a 5V reference voltage is provided. The module also features electronic shutdown and a metal enclosure for EMI reduction and heat dissipation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V, with a typical value of 12V.
The output voltage can be set from 0 to 5kV, with a maximum output current of 4mA.
The output voltage is controlled by an input voltage ranging from 0 to 5V applied to the CTRL pin.
Yes, the AHV12V5KV4MAW features electronic shutdown control.
This power module is used in applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
