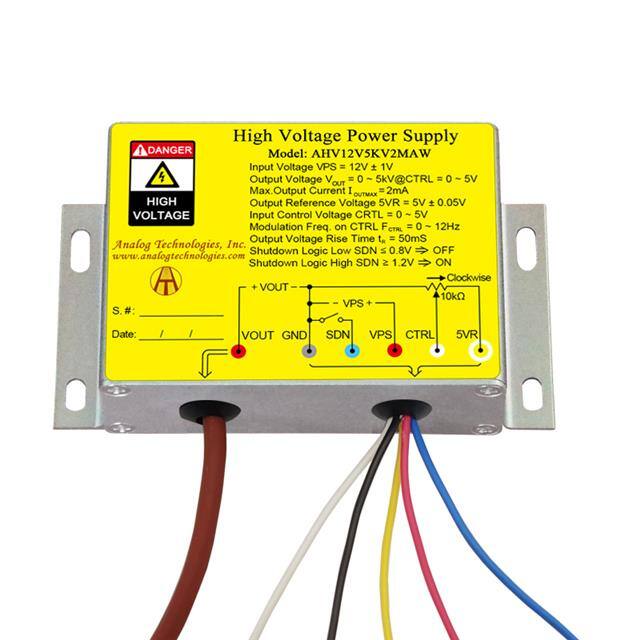

This Analog Technologies AHV12V5KV2MAW is a high voltage DC-DC converter module designed for applications requiring non-isolated, high voltage power. It accepts an input voltage of 12V ± 1V and can deliver an output voltage ranging from 0 to 5kV, controlled by an input signal from 0 to 5V. The maximum output current is limited to 2mA.
The converter has an efficiency of 75% and operates within a temperature range of -10°C to 55°C. Its physical dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height. The unit is enclosed and designed for chassis mounting, offering good heat sinking.
Key features include electronic shutdown control and zero EMI emissions due to its metal enclosure. The output voltage is directly proportional to the control voltage, with a ratio of 1000:1 (VOUT = 1000 x VCTRL).
Applications for this power module include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V.
The maximum output voltage is 5kV.
The maximum output current is 2mA.
The efficiency is approximately 75%.
It operates within -10°C to 55°C.
It is enclosed and chassis mount.
Yes, it is RoHS3 compliant.
