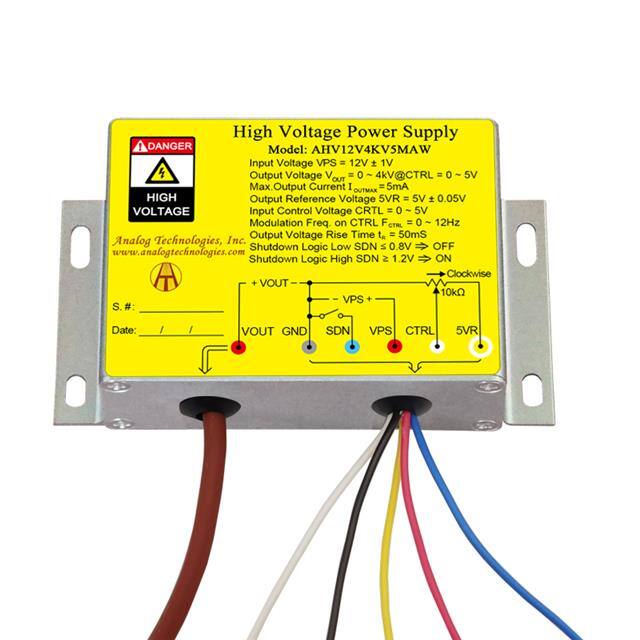

The Analog Technologies AHV12V4KV5MAW is a high voltage DC-DC converter designed for applications requiring precise high voltage generation from a low voltage input. This module features an adjustable output voltage ranging from 0V to 4kV, controlled via an input voltage of 0-5V. It has a maximum output current of 5mA and operates from a nominal 12V input power supply (11V-13V range).
Key features include electronic shutdown control, zero EMI emissions, and good heat sinking provided by its metal enclosure. The reference voltage output is 5V ± 0.05V and is intended solely for powering an external potentiometer for output voltage adjustment. The unit is designed for through-hole mounting and offers good thermal performance, with a recommended maximum surface temperature of 55°C.
This power module is suitable for a variety of demanding applications, including X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation. Its robust design and precise control capabilities make it a reliable choice for high voltage power supply needs.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 4kV.
The maximum output current is 5mA.
The input voltage range is 11V to 13V.
Yes, the output voltage can be set between 0V and 4kV using an input control voltage between 0V and 5V.
Yes, it features electronic shutdown control.
The efficiency is greater than 70% at full load.
The RoHS status is RoHS3 Compliant.
