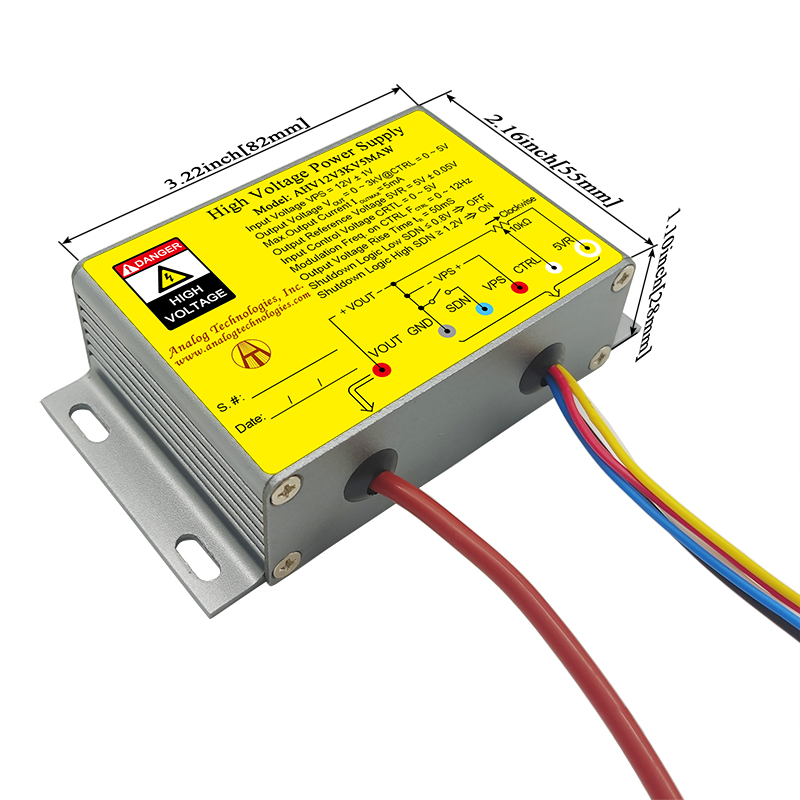

The Analog Technologies AHV12V3KV5MAW is an enclosed DC-DC converter designed for high voltage applications. It provides a precise, regulated output voltage of up to 3000V with a maximum output current of 5mA, operating from an input voltage range of 11V to 13V.
This converter boasts high efficiency, rated at over 70% at full load, and features linear regulation. The output voltage can be modulated using an input control voltage ranging from 0V to 5V, making it suitable for applications requiring adjustable high voltage.
Designed for chassis mounting, the AHV12V3KV5MAW has dimensions of 104.4mm in length, 59.9mm in width, and 27.9mm in height. It operates within an ambient temperature range of -10°C to 55°C. The unit is RoHS3 compliant and has an MSL rating of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AHV12V3KV5MAW provides a 3000V output voltage.
The maximum output current is 5mA.
The input voltage range is 11V to 13V.
The operating temperature range is -10°C to 55°C.
The output voltage can be modulated by an input control voltage ranging from 0V to 5V.
This converter uses chassis mount.
