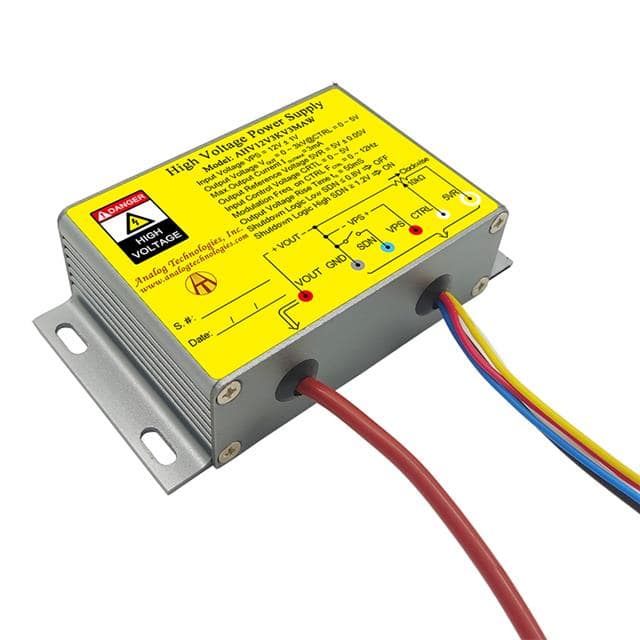

The Analog Technologies AHV12V3KV3MAW is a high voltage power supply module designed for DC-DC conversion from low voltage to high voltage.
Key electrical specifications include an input power voltage range of 11V to 13V, with an input current range of 225mA to 1.1A. The output voltage is adjustable from 0V to 3kV, controlled via an input control voltage of 0V to 5V. The maximum output current is 3mA. The module features a reference voltage of 5V ± 0.05V and an electronic shutdown control is available.
This power module is suitable for various applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, and electrospinning. It is housed in an enclosed type with a chassis mount for easy integration into systems. The dimensions are 104.4mm x 59.9mm x 27.9mm.
Environmental specifications include an operating temperature range of -10°C to 55°C. Compliance data indicates RoHS3 Compliant status and Moisture Sensitivity Level 1 Unlimited.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range for the AHV12V3KV3MAW is 11V to 13V.
The AHV12V3KV3MAW can provide an output voltage of up to 3kV.
The maximum output current for the AHV12V3KV3MAW is 3mA.
The operating temperature range is -10°C to 55°C.
The AHV12V3KV3MAW is a chassis mount type.
