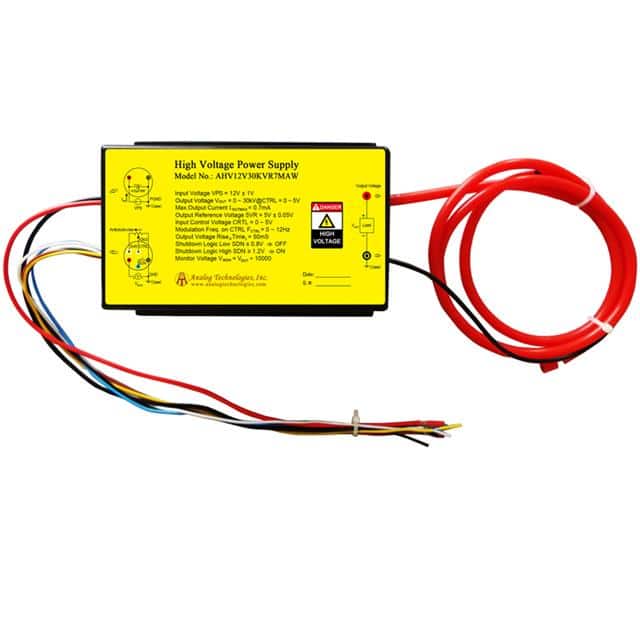

The Analog Technologies AHV12V30KVR7MAW is a high-voltage DC-DC converter designed for applications requiring efficient DC-DC conversion from low to high voltages. This enclosed module features a chassis mount type and operates within an input voltage range of 11V to 13V, with a typical input voltage of 12V. It delivers a precise output current of 700µA with a typical efficiency of 70%.
Designed for demanding environments, the AHV12V30KVR7MAW operates reliably within a temperature range of -20°C to 55°C. Its physical dimensions are 140.0mm in length, 100.0mm in width, and 55.0mm in height. The converter is shielded by a heavy-duty metal enclosure, which is crucial for mitigating electromagnetic interference (EMI) in noise-sensitive applications.
This power module is suitable for various industrial, analytical, and medical equipment, including X-ray machines, semiconductor fabrication equipment, and diagnostic systems. The unit allows for output voltage monitoring and features a shutdown mode for operational control.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V, with a typical value of 12V.
The typical output current is 700µA.
The operating temperature range is -20°C to 55°C.
It supports chassis mount.
The typical efficiency is 70%.
