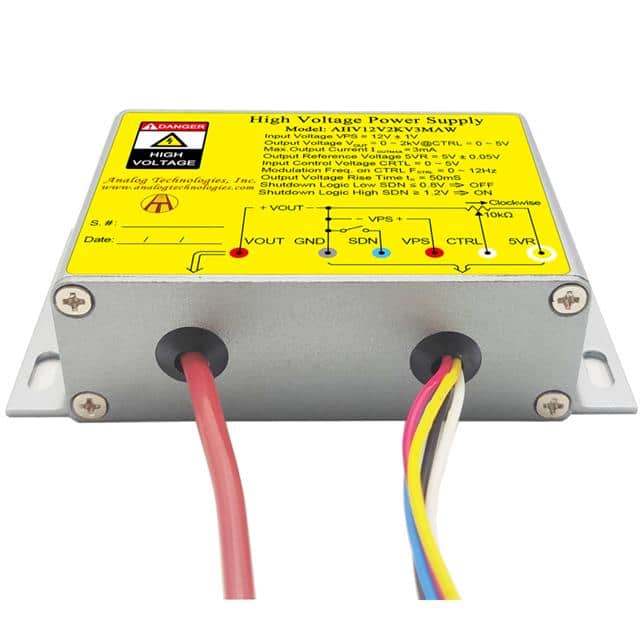

The Analog Technologies AHV12V2KV3MAW is a high voltage, non-isolated DC DC converter module designed for applications requiring precise high voltage power. It operates from a nominal 12V input voltage with a range of 11V to 13V and can deliver an output voltage from 0V up to 2kV, controlled by an input voltage between 0V and 5V. The maximum output current is limited to 3mA.
This converter features an enclosed, chassis mount package, making it suitable for integration into various systems. It offers electronic shutdown control and operates within a temperature range of -10°C to 55°C. The module boasts zero EMIs and good heat sinking due to its metal enclosure.
Key specifications include an input current range of 120mA to 710mA and a reference voltage of 5V ± 0.05V. The dimensions are approximately 104.4mm x 59.9mm x 27.9mm. Its efficiency is rated at 70%.
Applications for the AHV12V2KV3MAW include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning for nanofiber preparation.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V, with a nominal value of 12V ± 1V.
The maximum output voltage is 2kV, and the maximum output current is 3mA.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
The operating temperature range is -10°C to 55°C.
It is an enclosed, chassis mount type.
Typical applications include X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
