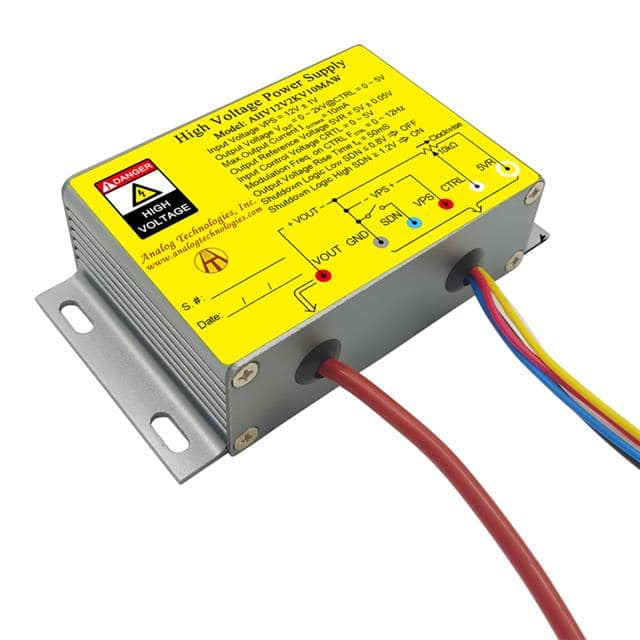

The AHV12V2KV10MAW from Analog Technologies is a high voltage power supply module designed for DC-DC conversion from low voltage to high voltage. It features an input power voltage of 12V ± 1V and can deliver an output voltage ranging from 0 to 2kV, controlled by an input voltage of 0 to 5V. The maximum output current is rated at 10mA.
This power module includes electronic shutdown control and is housed in a metal enclosure that provides good heat sinking and zero EMIs. The output voltage is directly proportional to the control voltage, with a ratio of 400V/V (VOUT = 400 × VCTRL).
Applications for this high voltage power supply include X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, electrospinning, and glass/fabric coating.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V.
The maximum output voltage is 2kV.
The maximum output current is 10mA.
The reference voltage is 5V ± 0.05V.
It has good heat sinking via a metal enclosure.
It produces zero EMI.
