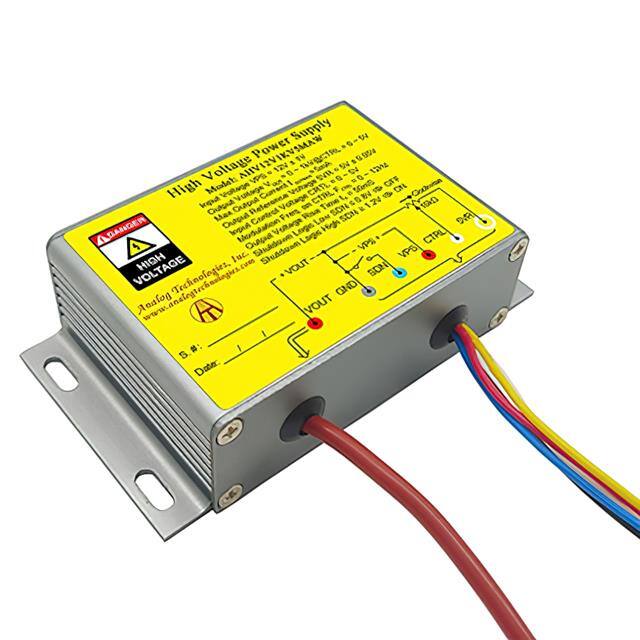

The Analog Technologies AHV12V1KV5MAW is a high voltage DC-DC converter module designed for applications requiring non-isolated power conversion. It accepts an input voltage range of 11V to 13V and can deliver an output voltage from 0V up to 1kV, controlled via an input signal from 0V to 5V. The maximum output current is limited to 5mA.
This converter features a reference voltage of 5V ± 0.05V and an input current range of 140mA to 600mA. It operates with an efficiency of 70% and has an electronic shutdown control available. The module is housed in a metal enclosure, providing zero EMIs and good heat sinking.
Designed for demanding applications, the AHV12V1KV5MAW is suitable for use in X-ray machines, spectral analysis, semiconductor manufacturing equipment, particle accelerators, and electrospinning processes. Its enclosed, chassis mount design facilitates integration into various systems.
Key specifications include an operating temperature range of -10°C to 55°C. The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The input voltage range is 11V to 13V.
The maximum output voltage is 1kV.
The maximum output current is 5mA.
The output voltage is controlled by an input control voltage ranging from 0V to 5V.
The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
The operating temperature range is -10°C to 55°C.
It is suitable for applications such as X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
