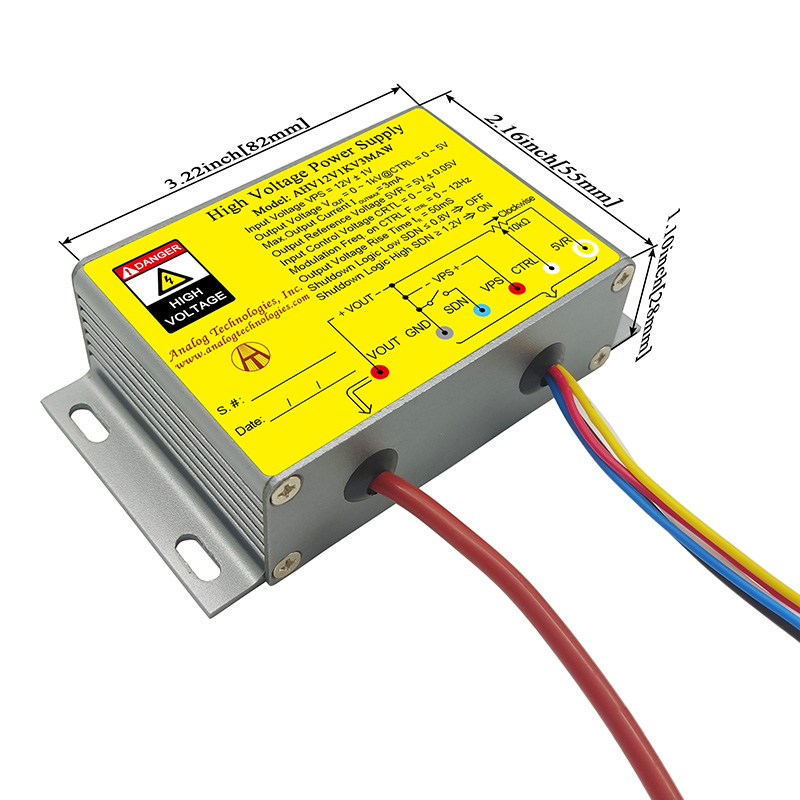

The Analog Technologies AHV12V1KV3MAW is an enclosed, chassis mount DC-DC converter designed for high voltage applications. It accepts an input voltage of 12V ± 1V and provides a regulated output voltage from 0 to 1kV, controlled via an input voltage range of 0 to 5V. The maximum output current is rated at 3mA, with an efficiency exceeding 70% at full load.
This power module is suitable for applications requiring DC-DC conversion from low voltage to high voltage. Its metal enclosure offers zero EMIs and good heat sinking. The dimensions are 104.4mm x 59.9mm x 27.9mm, and it operates within a temperature range of -10°C to 55°C.
Key features include electronic shutdown control and a reference voltage of 5V ± 0.05V, intended for potentiometer use to adjust output voltage. The output voltage is directly proportional to the control voltage, with a ratio of 200V/V (VOUT = 200 * VCTRL).
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The maximum output voltage is 1kV.
The maximum output current is 3mA.
The input voltage range is 11V to 13V.
The output voltage is controlled by an input control voltage ranging from 0 to 5V.
The efficiency is greater than 70% at full load.
The operating temperature range is -10°C to 55°C.
The dimensions are 104.4mm x 59.9mm x 27.9mm.
