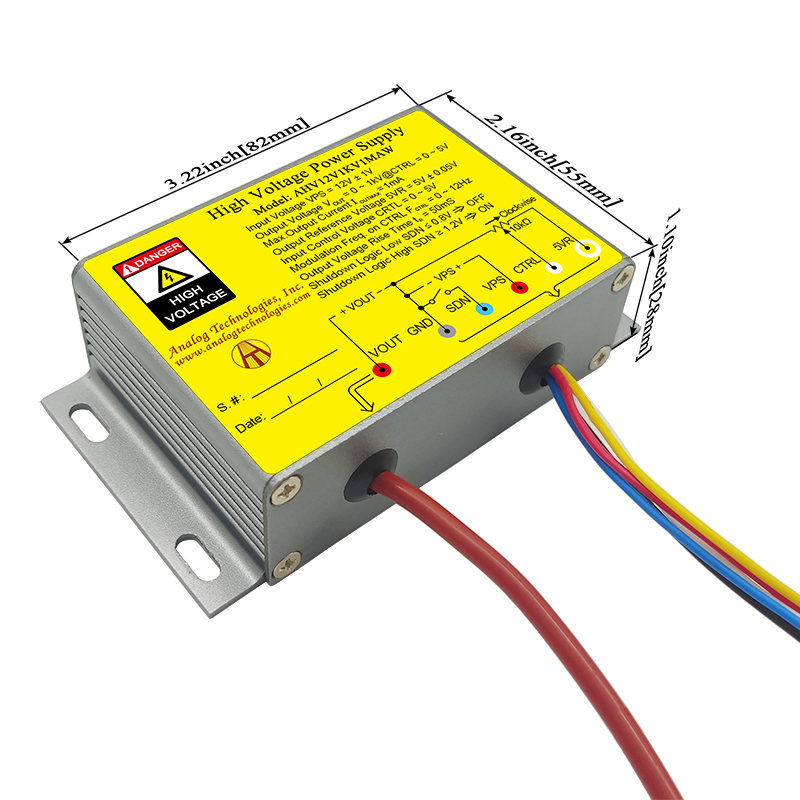

The Analog Technologies AHV12V1KV1MAW is a high voltage DC-DC converter with non-isolated topology. It is designed for applications requiring precise high voltage output, featuring a 1kV maximum output voltage and a 1mA maximum output current. The unit operates efficiently with an input voltage range of 11V to 13V, boasting an efficiency greater than 70% at full load.
This converter is enclosed and designed for chassis mounting, making it suitable for integration into various systems. It offers a full modulation range on the output voltage, controllable via an input control voltage of 0-5V. The operating temperature range is from -10°C to 55°C. The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
Key features include high precision, linear regulation, and electronic shutdown control. The design aims for zero EMIs and good heat sinking through its metal enclosure, though additional heat dissipation measures are advisable for optimal performance and longevity. The reference voltage output is intended solely for potentiometer use to adjust the high-voltage output and should not power other devices.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AHV12V1KV1MAW provides a 1kV output voltage.
The input voltage range is 11V to 13V.
The maximum output current is 1mA.
The efficiency is greater than 70% at full load.
The operating temperature range is -10°C to 55°C.
The high voltage output can be set by connecting the CTRL lead to a POT's central tap or modulated by an AC signal ranging from 0V to 5V.
The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
