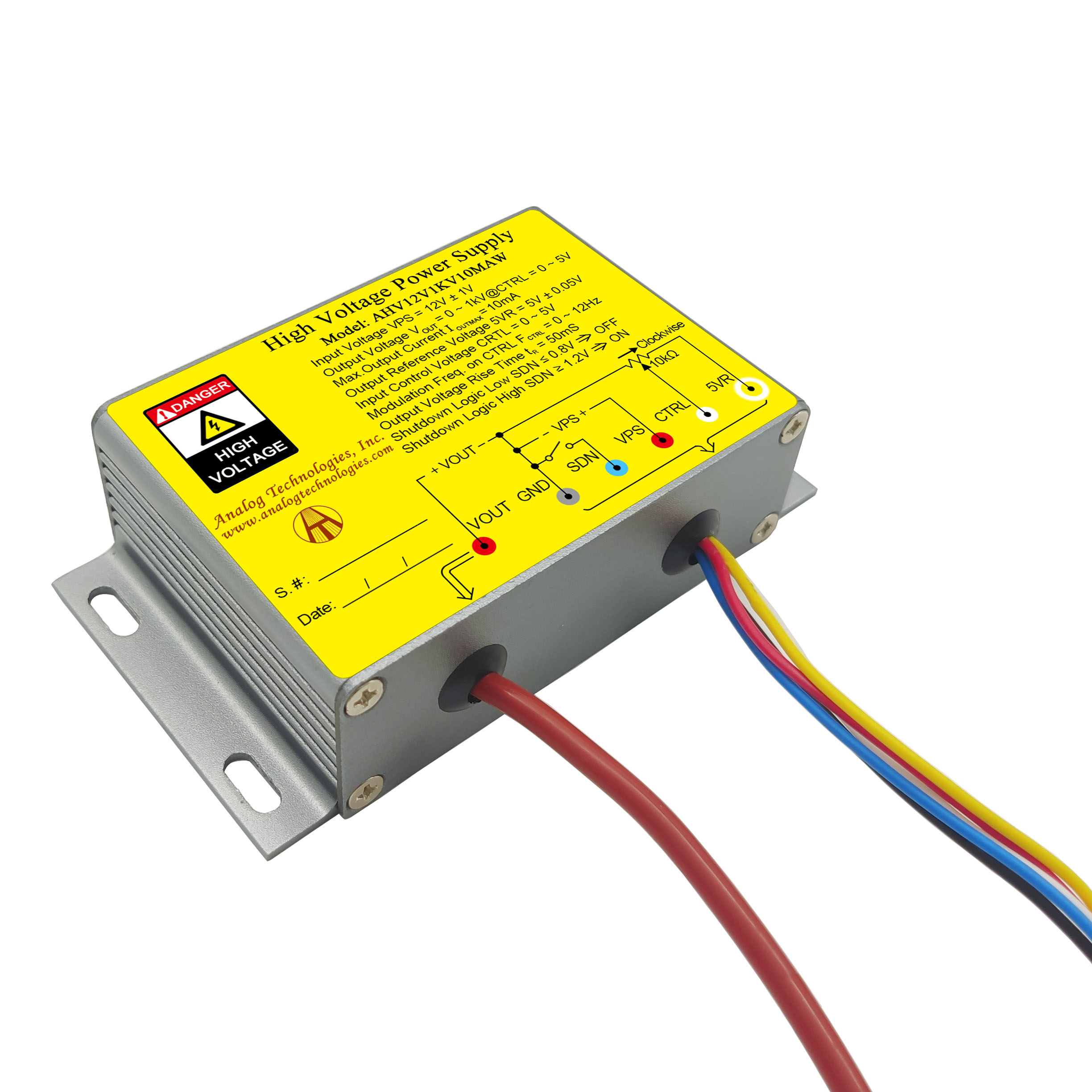

The AHV12V1KV10MAW from Analog Technologies is a high voltage DC-DC power supply module designed for converting low voltage inputs to high voltage outputs. It features an input voltage range of 11V to 13V and can provide an output voltage from 0 to 1kV.
Key electrical specifications include a maximum output current of 10mA, an input current range of 225mA to 1.1A, and a reference voltage of 5V ± 0.05V. The module operates with an input control voltage range of 0 to 5V, allowing for precise regulation. It also includes electronic shutdown control.
This power module is enclosed and designed for chassis mounting. It operates within a temperature range of -10°C to 55°C. The dimensions are 104.4mm in length, 59.9mm in width, and 27.9mm in height.
Applications for this high voltage power supply include X-ray machines, spectral analysis, semiconductor manufacturing equipment, and particle accelerators.
