| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Weight | |
| Width |

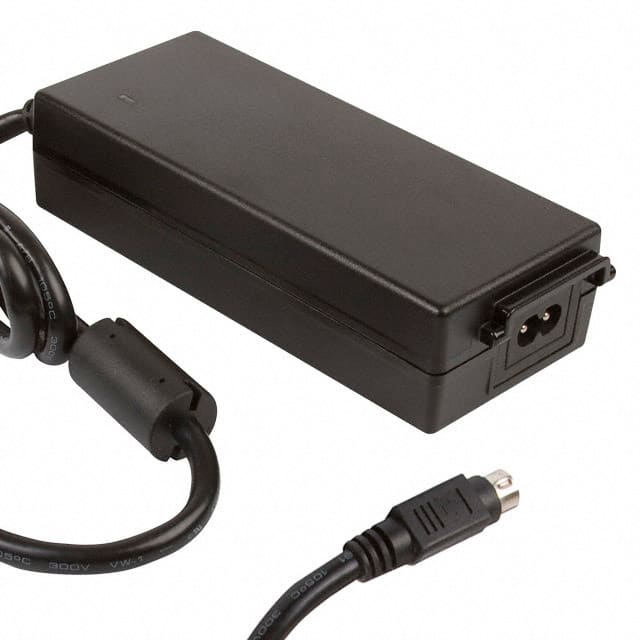

This XP Power AHM85PS12C2-8 is an 85W AC/DC external desktop adapter designed for ITE (Commercial) and Medical applications. It features a 12V output voltage and accepts a wide input voltage range of 80-264 VAC, operating at 47-63 Hz.
The adapter meets Energy Efficiency Level V standards and has a low no-load power consumption of less than 0.5W. It is convection-cooled and designed for reliable operation within an ambient temperature range of 0°C to 60°C.
Key electrical specifications include a typical efficiency of 92%, line regulation of ±1.5%, and load regulation of ±3.0%. Protection features include overvoltage, overload, and short circuit protection. The unit is compliant with standards such as EN 60601-1 and EN 62368-1, with approvals from CB, TUV, and UL.
The form factor is a desktop (Class II) type with dimensions of 150.0mm x 64.0mm x 37.0mm. It utilizes an IEC 320-C8 input connector and a 4-pin Power DIN output connector. The cord length is 0.9 meters (35.4 inches).
0°C to +60°C, derating linearly from 100% power at +40°C to 60% power at +60°C.
80-264 VAC.
12V output, maximum current 7.08A.
92% typical.
Medical (60601-1) and ITE (62368-1) safety approvals; CB, TUV, UL certified.
Overvoltage protection (125% typical, auto-recovery), overload protection (115-175%, auto-recovery), and short circuit protection (hiccup mode).
Desktop (Class II) with IEC 320-C8 input connector.
