| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Voltage |

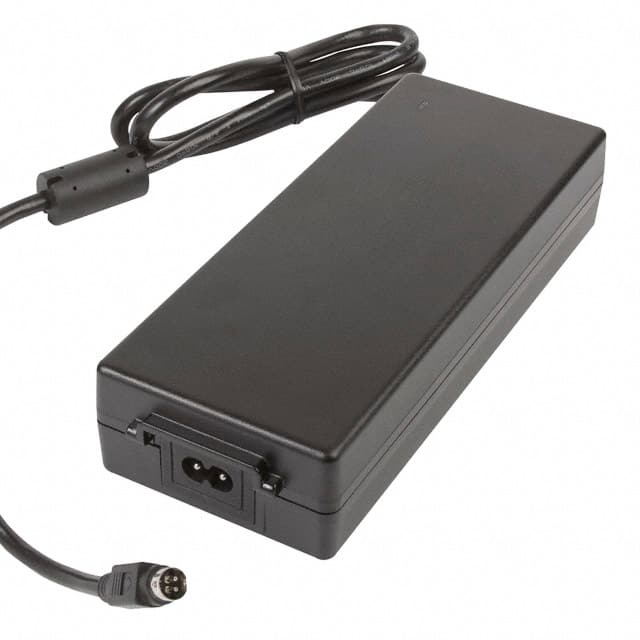

The XP Power AHM180PS12C2-8 is an AC-DC desktop power supply designed for commercial and medical applications. It delivers a 12V output with a maximum power rating of 165W.
This adapter operates with an input voltage range of 80-264 VAC and features Level V energy efficiency, ensuring reduced power consumption. It boasts an IP22 environmental rating for protection against solid objects and dripping water.
Key electrical specifications include ±1.5% line regulation and ±3.0% load regulation, with a transient response of 5% maximum deviation. The unit includes overvoltage, overload, and short circuit protection for reliable operation. It also features a low no-load power consumption of less than 0.5W.
Designed for versatility, the AHM180PS12C2-8 has dimensions of 200.0mm x 80.0mm x 37.0mm and uses an IEC 320-C8 input connector and a 4-pin Power DIN output connector. It is approved by CB, TUV, and UL, and complies with standards such as 60601-1 and 62368-1.
The output voltage is 12V.
The maximum power output is 165W.
The input voltage range is 80-264 VAC.
It meets Level V energy efficiency standards.
The operating temperature range is 0°C to 60°C.
Yes, it is RoHS3 Compliant.
The environmental rating is IP22.
