| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

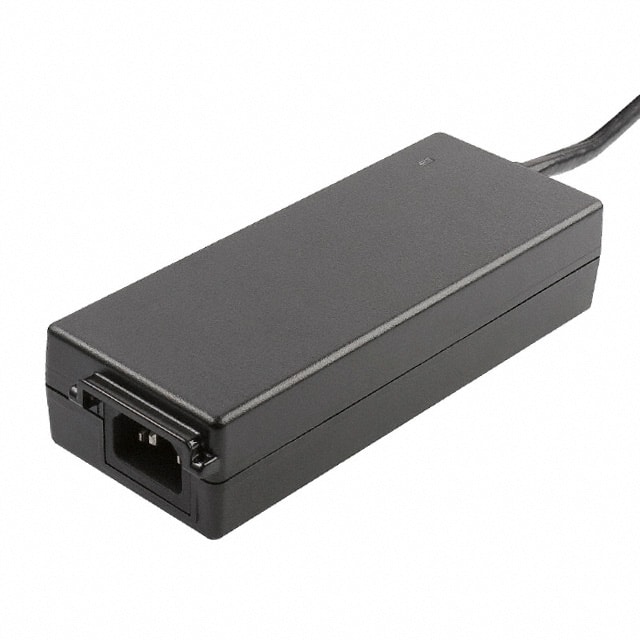

The XP Power AHM180PS12 is a versatile AC/DC desktop power supply designed for ITE and Medical applications. It delivers a 12V output with a maximum power of 165W.
This adapter meets Energy Efficiency Level V standards and operates across a wide input voltage range of 80-264 VAC, with a frequency of 47-63 Hz. Key electrical specifications include a typical efficiency of 92%, power factor greater than 0.9 at 115/250 VAC, and comprehensive protection features such as overvoltage, overload, and short circuit protection.
The unit features a convection-cooled design and is housed in a desktop form factor (Class I). It includes an IEC 320-C14 input connector and a 4-pin Power DIN output connector. The dimensions are 200.0mm x 80.0mm x 37.0mm.
Environmental compliance includes RoHS3 compliance and an MSL rating of 1. The operating temperature range is 0°C to 60°C, with derating applied above 40°C. It is suitable for international use.
The AHM180PS12 provides a 12V output at 165W.
The input voltage range is 80-264 VAC at 47-63 Hz.
It achieves 92% typical efficiency and meets Level V energy efficiency standards.
The operating temperature range is 0°C to +60°C, with derating above +40°C.
Overvoltage protection at 125% typical, overload protection at 115-175% with auto recovery, and short circuit protection with hiccup mode.
The dimensions are 200.0 x 80.0 x 37.0 mm.
It has an IEC 320-C14 input connector and a 4-pin Power DIN output connector.
