| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Medical Grade | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Weight |

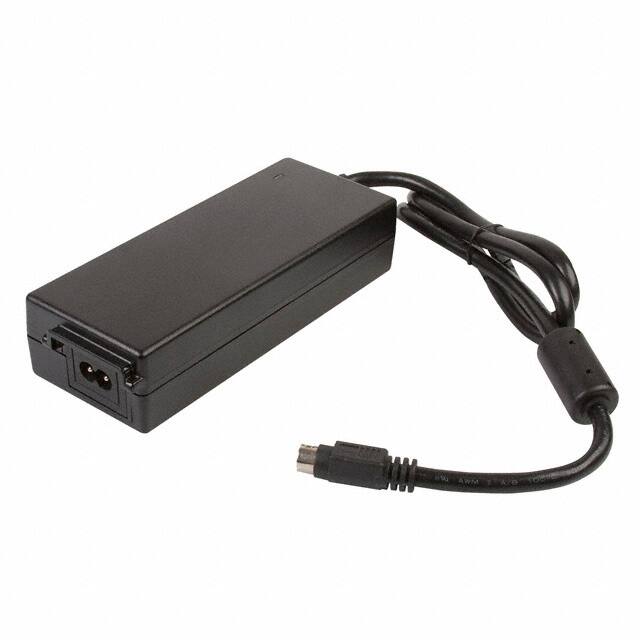

The XP Power AHM100PS12C2-8 is a versatile 100W AC/DC desktop adapter designed for reliable power delivery. It operates with an input voltage range of 80-264 VAC and provides a stable 12V output at up to 8.33A.
This adapter meets Energy Efficiency Level V standards, ensuring reduced energy consumption. It is designed for demanding environments, with applications including ITE (Commercial) and Medical equipment. The unit features a robust design with comprehensive protection mechanisms, including overvoltage, overload, and short circuit protection.
Key specifications include a typical efficiency of 92%, a power factor greater than 0.9, and a low no-load power consumption of less than 0.5W. The adapter operates within a temperature range of 0°C to 60°C and is convection-cooled. Its compact dimensions (160.0mm x 64.0mm x 37.0mm) make it suitable for integration into various systems.
The AHM100PS12C2-8 complies with international standards such as 60601-1 and 62368-1, and has received approvals from CB, TUV, and UL. It utilizes an IEC 320-C8 input connector and a 4-pin Power DIN output connector. The cord length is 0.9 meters (35.4 inches).
12V DC.
Box.
0°C to +60°C, with linear derating from 100% power at +40°C to 60% power at +60°C.
80-264 VAC.
92% typical.
Overvoltage protection at 125% typical, overload protection 115-175% with auto recovery, short circuit hiccup mode.
Input to output 4000 VAC (2x MOPP), input to earth 1500 VAC (1x MOPP), output to earth 500 VAC (1x MOPP).
