| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
2,500 pcs
|
2500 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Coil Current | |
| Coil Type | |
| Coil Voltage | |
| Contact Form | |
| Contact Material | |
| Contact Rating (Current) | |
| Mounting Type | |
| Must Operate Voltage | |
| Must Release Voltage | |
| Operate Time | |
| Operating Temperature | |
| Relay Type | |
| Release Time | |
| Switching Voltage | |
| Termination Style |

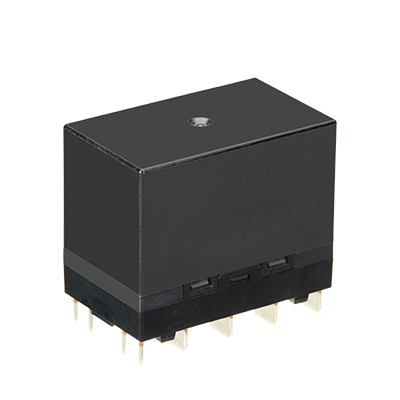

The Panasonic Electronic Components AHER4191 is a general purpose power relay from the HE-R series. It features a non-latching coil type with a nominal voltage of 12VDC and a coil current of 333 mA. The relay offers a contact form of 5PST-4NO/1NC (4 Form A, 1 Form B) with a contact rating of 40 A and a switching voltage of up to 480VAC.
Designed for through-hole mounting with PC pin termination, this relay operates within a temperature range of -40°C to 85°C. Key electrical specifications include a must-operate voltage of 9 VDC and a must-release voltage of 0.6 VDC, with an operate time of 50 ms and a release time of 30 ms. The contact material is Silver Tin Oxide (AgSnO).
This component is suitable for applications requiring high current switching capabilities. Its robust construction and specified operating parameters make it a reliable choice for various industrial and electronic systems.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.00 | $2.00 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The coil voltage is 12VDC.
The contact rating is 40A.
It has 4 Form A and 1 Form B contact forms.
-40°C to 85°C.
The must operate voltage is 9 VDC.
RoHS compliance status is unverified.
