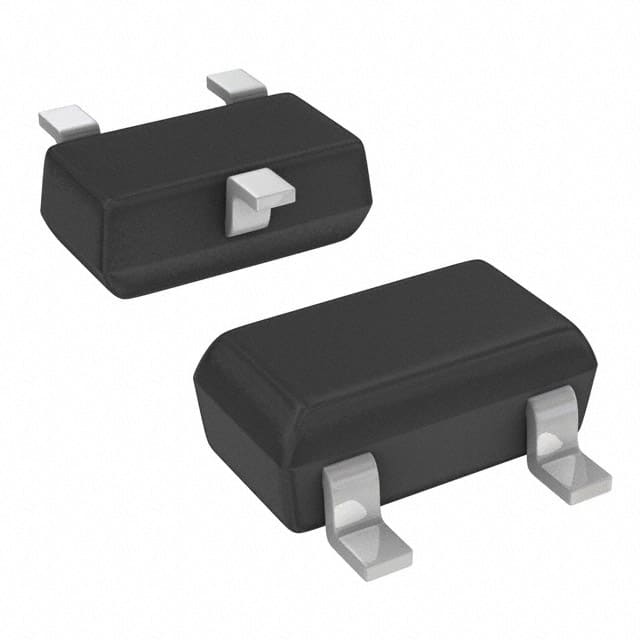

The AH180N-WSG-7 from Diodes Incorporated is a digital switch utilizing Hall Effect technology. This omnipolar switch is designed to detect both north and south magnetic poles, offering a sensing range of ±5mT for trip and ±1mT for release at 25°C.
It operates with a supply voltage between 2.5V and 5.5V and consumes a maximum of 16µA supply current. The output type is Open Drain, making it suitable for various interface requirements. The device is polarized to detect both North and South poles.
Packaged in a TO-236-3, SC-59, SOT-23-3 (SC-59-3) format, the AH180N-WSG-7 is designed for surface mounting. Its operating temperature range is -40°C to 85°C (TA). This component falls under the category of Magnetic Sensors - Switches (Solid State).
Environmental compliance includes RoHS3 status, REACH Unaffected, and Moisture Sensitivity Level 3. The part is suitable for applications requiring magnetic field detection with a compact, surface-mountable solution.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The operating voltage range is 2.5V to 5.5V.
The maximum supply current is 16µA.
The operating temperature range is -40°C to 85°C (TA).
The output type is Open Drain.
The AH180N-WSG-7 is designed for surface mounting.
