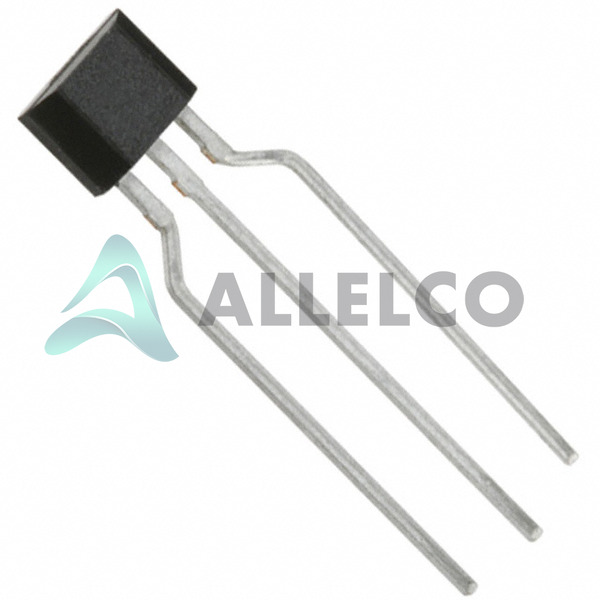

The AH1809-P-A from Diodes Incorporated is a low sensitivity, micropower omnipolar Hall-effect switch IC. It is optimized for battery-powered applications, operating over a supply range of 2.5V to 5.5V and consuming only 24µW at 3V.
This switch features a single open drain output that activates with either a North or South magnetic pole. The output turns on when the magnetic flux density exceeds the operate point (Bop) and turns off when it falls below the release point (Brp). It is designed with a chopper-stabilized architecture for superior temperature stability and minimal switch point drift.
The AH1809-P-A is available in a 3-SIP package with formed leads, suitable for through-hole mounting. It operates across a wide temperature range of -40°C to +125°C, making it suitable for various industrial and consumer products such as smart e-meters and tamper protection switches.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AH1809-P-A operates from 2.5V to 5.5V.
The operating temperature range is -40°C to 125°C.
The AH1809-P-A has a single open drain output.
The AH1809-P-A is available in a 3-SIP package with formed leads.
The AH1809-P-A is RoHS3 Compliant.
