| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
50 pcs
|
50 pcs | On Request | 1 | On Request | On Request | 16+ | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Function | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Polarization | |
| Sensing Range | |
| Supplier Device Package | |
| Supplier Package | |
| Tape & Reel | |
| Technology | |
| Test Condition | |
| Voltage |

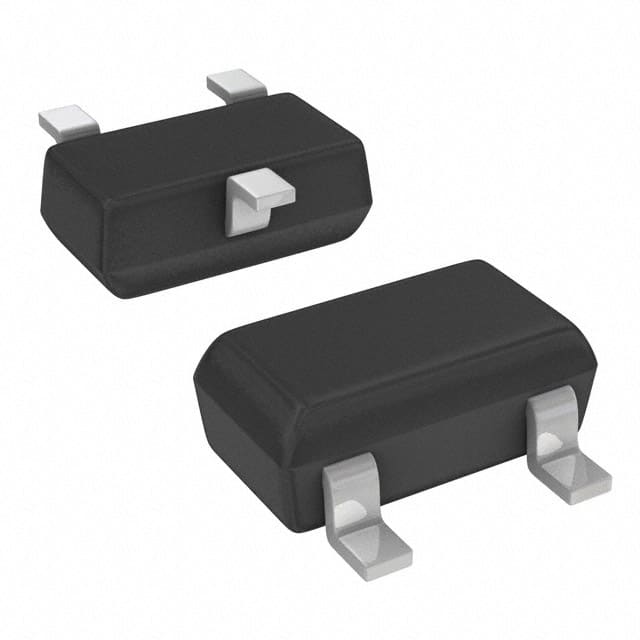

The AH1801-WG-7 from Diodes Incorporated is a micropower, ultra-sensitive Hall Effect switch designed for battery-operated applications. It features a wide operating voltage range of 2.5V to 5.5V and a broad operating temperature range of -40°C to +85°C.
This omnipolar switch responds to either the north or south pole of a magnet. The output is open drain, and it is designed for surface mount applications in a SC-59-3 package. The sensing range is specified as ±6mT for trip and ±1mT for release at 25°C.
Key features include micropower operation, superior temperature stability, and good RF noise immunity. It is suitable for handheld equipment such as cellular phones, PDAs, and cordless phones.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AH1801-WG-7 operates from 2.5V to 5.5V.
The operating temperature range is -40°C to 85°C.
The AH1801-WG-7 has an Open Drain output type.
The sensing range is ±6mT for trip and ±1mT for release.
The AH1801-WG-7 is supplied in the SC-59-3 package.
The AH1801-WG-7 is RoHS3 Compliant.
