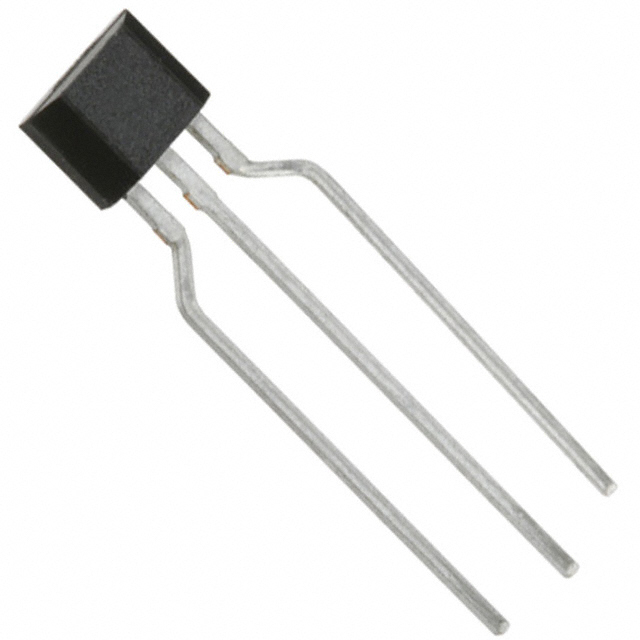

The AH180-PG-A from Diodes Incorporated is an omnipolar magnetic switch based on Hall Effect technology. This component is designed for applications requiring detection of magnetic fields from either pole.
Key electrical specifications include an operating supply voltage range of 2.5V to 5.5V, with a typical operating supply voltage of 3.3V or 5V. It draws a low operating supply current of 8 µA and has a maximum output current of 1 mA. The device features an open-drain output type and a sensing range of ±6mT trip and ±2mT release.
Environmentally, the AH180-PG-A operates within a temperature range of -40°C to 85°C. It is supplied in a 3-SIP package with formed leads, suitable for through-hole mounting. The switch is classified as RoHS3 Compliant and REACH Unaffected, with a Moisture Sensitivity Level (MSL) of 1 Unlimited.
This magnetic switch is suitable for various sensing applications where reliable detection of magnetic presence is required.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AH180-PG-A operates with a supply voltage range of 2.5V to 5.5V.
The operating temperature range for the AH180-PG-A is -40°C to 85°C (TA).
The AH180-PG-A is supplied in a 3-SIP package with formed leads.
The AH180-PG-A is RoHS3 Compliant.
