| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
30 pcs
|
30 pcs | On Request | 1 | On Request | On Request | 2026-02-25 06:16:38 | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Current | |
| Features | |
| Function | |
| Halogen Free | |
| Mounting Type | |
| Operating Temperature | |
| Output Type | |
| Polarization | |
| Sensing Range | |
| Storage Temperature | |
| Supplier Device Package | |
| Tape & Reel | |
| Technology | |
| Test Condition | |
| Voltage |

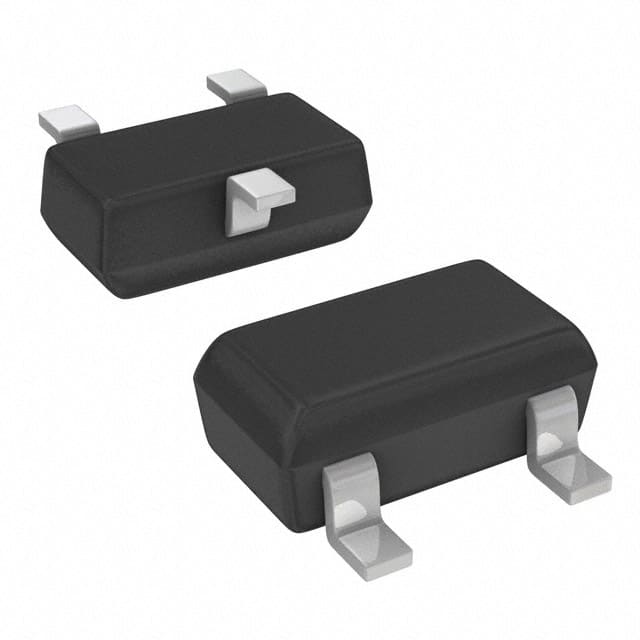

The AH175-WL-7-B from Diodes Incorporated is a single-digital-output Hall-Effect latch sensor engineered for high-temperature environments. It operates within a supply voltage range of 3.5V to 20V DC and offers an output sink current of up to 25mA.
This device incorporates an on-chip Hall voltage generator, an amplifier, and a comparator with switching hysteresis for noise rejection. It includes an open-collector output pre-driver and an internal band-gap regulator for stable voltage supply across its operating range. The sensor functions as a bipolar Hall-Effect latch, switching its output state based on magnetic flux density reversals.
Key features include temperature compensation, built-in power reverse protection, and an operating temperature range of -40°C to +150°C. The AH175-WL-7-B is available in an SC-59-3 surface-mount package, also known as TO-236-3 or SOT-23-3. It is suitable for applications such as rotor position sensing, current switches, encoders, and RPM detections.
| Qty | Low | High |
|---|---|---|
| 1+ | $1.50 | $1.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AH175-WL-7-B operates within a voltage range of 3.5V to 20V.
The maximum output sink current for the AH175-WL-7-B is 25mA.
The AH175-WL-7-B can operate in temperatures from -40°C to 150°C.
The AH175-WL-7-B is supplied in an SC-59-3 package.
Yes, the AH175-WL-7-B features temperature compensation.
