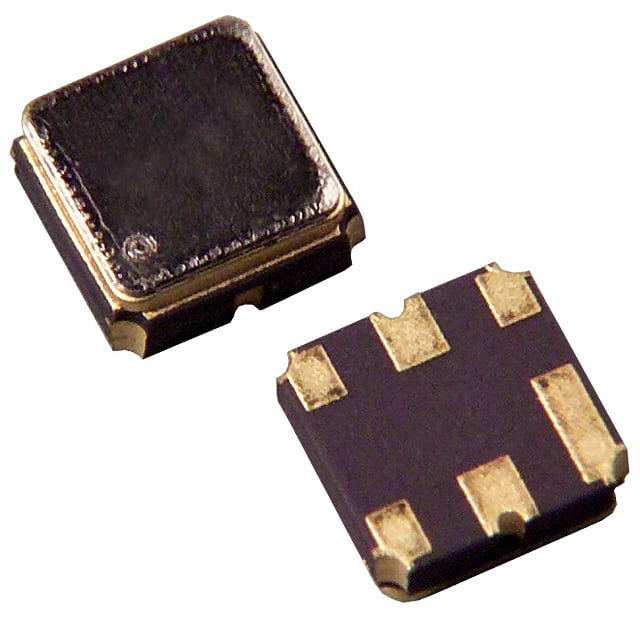

The AFS1575.42S4-T is a surface acoustic wave (SAW) filter from Abracon designed for GPS and RF applications. Its center frequency is 1575.42 MHz with a bandwidth of 2.4 MHz. Insertion loss is typically 1.5 dB, with a maximum of 2.0 dB. Amplitude ripple is 0.15 dB typical and 1.0 dB maximum. Voltage standing wave ratio (VSWR) is 1.1 typical and 2.0 maximum. The filter provides high attenuation across multiple stopband ranges: 37 dB minimum up to 1382 MHz, 40 dB minimum from 1382 to 397 MHz, and 30 dB minimum near the passband edges. Maximum input power is 10 dBm. Source and load impedance are 50 ohms. Operating temperature range is -40°C to +85°C, with storage from -50°C to +100°C. The device is housed in a 6-SMD, no lead package measuring 3.0mm x 3.0mm x 1.5mm and is supplied in tape and reel packaging (1,000 pcs/reel). The part is RoHS3 compliant.
| Qty | Low | High |
|---|---|---|
| 1+ | $2.26 | $2.26 |
| 10+ | $1.85 | $1.85 |
| 25+ | $1.61 | $1.61 |
| 100+ | $1.51 | $1.51 |
| 250+ | $1.50 | $1.50 |
| 500+ | $1.44 | $1.44 |
| 1,000+ | $1.22 | $1.22 |
| 2,000+ | $1.11 | $1.11 |
| 5,000+ | $1.06 | $1.06 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
6-SMD, No Lead surface mount package, size 3.0mm x 3.0mm x 1.5mm.
-40°C to +85°C.
Yes, RoHS3 compliant as per datasheet.
1575.42 MHz.
1.5 dB.
2.4 MHz.
50 ohms.
