| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
9,000 pcs
|
9000 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Amplitude Ripple (Typical/Maximum @ 1571.42~1605.89 MHz) | |
| Amplitude Ripple (Typical/Maximum @ 1573.42~1577.42 MHz) | |
| Applications | |
| Bandwidth | |
| Center Frequency (fc) | |
| DC Permissive Voltage | |
| Frequency | |
| Height (Max) | |
| Industrial Grade | |
| Input Impedance (ZS) | |
| Input Power | |
| Insertion Loss | |
| Insertion Loss (Typical/Maximum @ 1571.42~1605.89 MHz) | |
| Insertion Loss (Typical/Maximum @ 1573.42~1577.42 MHz) | |
| Lead Style | |
| Length | |
| Military Grade | |
| Mounting Type | |
| Operating Temperature Range | |
| Output Impedance (ZL) | |
| Return Loss (Minimum/Typical @ 1571.42~1605.89 MHz) | |
| Return Loss (Minimum/Typical @ 1573.42~1577.42 MHz) | |
| Standard Package Quantity | |
| Stopband Attenuation (Minimum/Typical @ 1452~1525 MHz) | |
| Stopband Attenuation (Minimum/Typical @ 1710~1785 MHz) | |
| Stopband Attenuation (Minimum/Typical @ 1785~1850 MHz) | |
| Stopband Attenuation (Minimum/Typical @ 1850~6000 MHz) | |
| Stopband Attenuation (Minimum/Typical @ 824~849 MHz) | |
| Stopband Attenuation (Minimum/Typical @ 849~880 MHz) | |
| Stopband Attenuation (Minimum/Typical @ 880~915 MHz) | |
| Stopband Attenuation (Minimum/Typical @ 915~1452 MHz) | |
| Stopband Attenuation (Minimum/Typical @ D.C~824 MHz) | |
| Storage Temperature | |
| Storage Temperature Range | |
| Tape & Reel | |
| Temperature Coefficient of Frequency | |
| Width |
The Abracon AFS14A34-1588.66-T3 is a surface mount SAW filter with a center frequency of 1588.66 MHz and a bandwidth of 34 MHz. It is designed for general purpose RF filtering applications and operates into a 50 Ω system without requiring a matching network.
Electrical specifications include an insertion loss of 1.25 dB typical (1.70 dB max) over 1573.42 to 1577.42 MHz, and 1.7 dB typical (2.5 dB max) over 1571.42 to 1605.89 MHz. Amplitude ripple is 0.25 dB typical (0.8 dB max) in the narrower band and 0.7 dB typical (1.5 dB max) in the wider band. Stop-band attenuation is at least 25 dB from 1850 to 6000 MHz and at least 30 dB in most other specified stop bands.

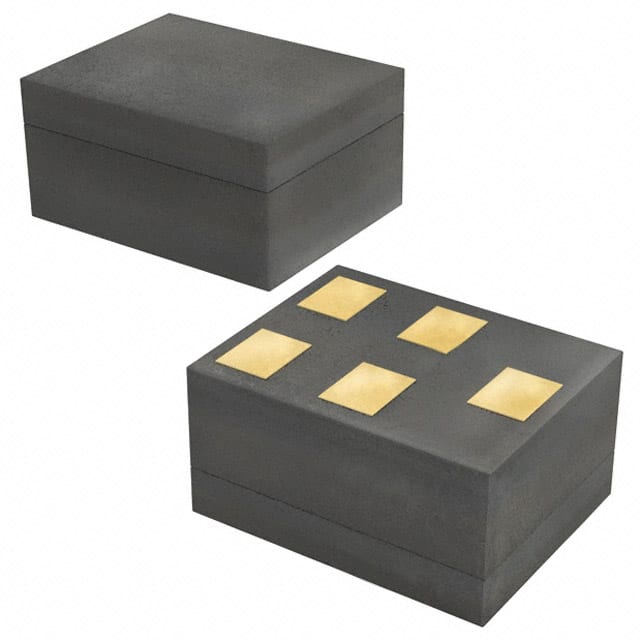

The filter is housed in a compact 1.4 mm x 1.1 mm x 0.7 mm 5-SMD no-lead package, suitable for space-constrained designs. It operates over a temperature range of -30°C to +85°C and can be stored from -40°C to +85°C. The temperature coefficient of frequency is -36 ppm/°C.
The device is RoHS compliant and has a moisture sensitivity level of 3. It is supplied in tape and reel packaging with a standard quantity of 3000 units per reel.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.95 | $0.95 |
| 10+ | $0.77 | $0.77 |
| 25+ | $0.67 | $0.67 |
| 100+ | $0.63 | $0.63 |
| 250+ | $0.58 | $0.58 |
| 500+ | $0.55 | $0.55 |
| 3,000+ | $0.51 | $0.51 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The center frequency is 1588.66 MHz.
