The AFM906NT1 is an RF power LDMOS transistor from NXP Semiconductors, designed for handheld two-way radio applications. It operates across a wide frequency range from 136 to 941 MHz, making it suitable for VHF, UHF, and 700-800 MHz bands.
At 7.5 Vdc typical operating voltage, the device provides 6.5 W output power with 16.2 dB power gain and 62.0% drain efficiency across 440-520 MHz. In narrowband 520 MHz test conditions, it achieves 6.8 W output, 20.3 dB gain, and 70.8% efficiency. The transistor features integrated ESD protection (Class 1C HBM) and exceptional ruggedness, surviving >65:1 VSWR at all phase angles.

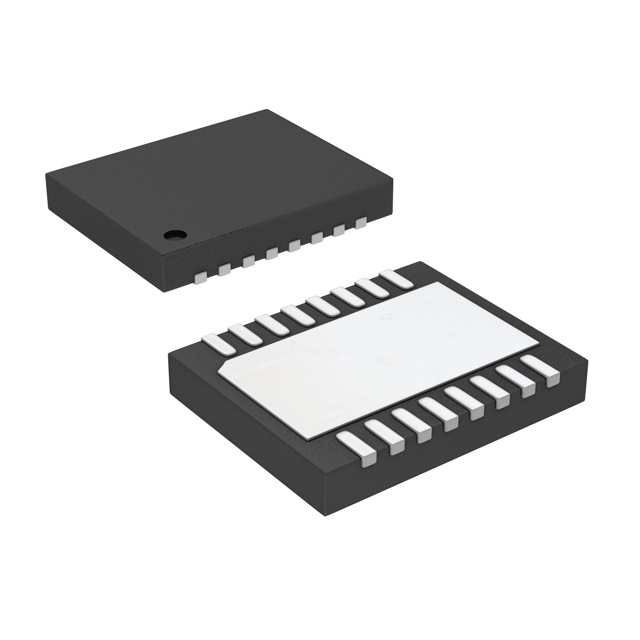

The device is housed in a 16-VDFN exposed pad package (16-DFN 4x6 mm) with surface mount mounting. The exposed backside serves as the source terminal for thermal management. Maximum drain-source voltage is 30 V, gate-source voltage is 12 V, and total device dissipation is 65.8 W at 25°C case temperature.
Typical applications include output stages for VHF and UHF handheld radios, 700-800 MHz handheld radios, and as a generic 6 W driver for ISM and broadcast final stage transistors. The device is characterized for operation from 136 to 941 MHz and is unmatched input and output for wide frequency range utilization.
| Qty | Low | High |
|---|---|---|
| 1+ | $3.71 | $3.71 |
| 10+ | $2.79 | $2.79 |
| 25+ | $2.56 | $2.56 |
| 100+ | $2.31 | $2.31 |
| 250+ | $2.19 | $2.19 |
| 500+ | $2.11 | $2.11 |
| 1,000+ | $2.04 | $2.04 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The typical operating voltage is 7.5 Vdc.
It comes in a 16-VDFN Exposed Pad package (16-DFN 4x6 mm) for surface mount mounting.
The operating junction temperature range is -40 to +150 °C, and storage temperature range is -65 to +150 °C.
The device is listed as RoHS3 Compliant, but this status is unverified.
Typical output power is 6.5 W across 440-520 MHz and 6.8 W at 520 MHz.
Typical power gain is 16.2 dB across 440-520 MHz and 20.3 dB at 520 MHz.
Typical drain efficiency is 62.0% across 440-520 MHz and 70.8% at 520 MHz.
