| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Industrial Grade | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Medical Grade | |
| Operating Temperature | |
| Output Connector | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Voltage | |
| Width |

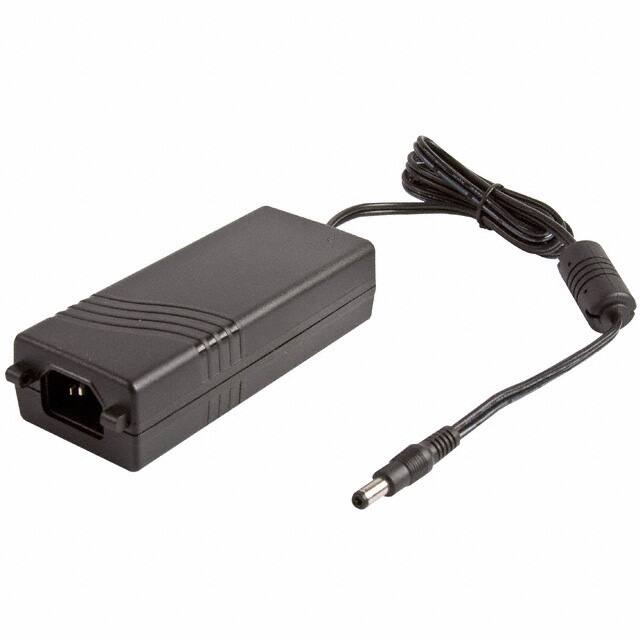

The XP Power AFM45US18 is a 48W AC/DC desktop adapter that provides a fixed 18V DC output. It accepts a universal AC input voltage from 80 to 264 VAC at 47-63 Hz. The adapter draws a maximum input current of 1.2 A rms at 115VAC and has an inrush current limited to 120 A at 240VAC. It meets EN61000-3-2 Class A for power factor and has an earth leakage current of 150 μA maximum at 264 VAC/60 Hz. No-load input power is less than 0.3 W.
Output regulation is ±1.0% for line and 2.5% maximum for load. Initial set accuracy is ±2%. The adapter requires no minimum load and has a start-up delay of 3 seconds maximum at 115VAC, with a hold-up time of 8 milliseconds minimum at 115VAC. The output voltage is not user-adjustable.
This desktop adapter is suitable for a wide range of applications requiring a reliable 18V DC power source, including industrial control, telecommunications, and test equipment. It is designed for use in environments where low standby power and compliance with harmonic current limits are important.
The input voltage range is 80-264 VAC.
The output voltage is 18V DC.
The output power is 48W.
The input frequency range is 47-63 Hz.
No, no minimum load is required.
The no-load power consumption is less than 0.3W.
