| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Failure Rate | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Polarization | |
| Power (Watts) | |
| Region Utilized | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Weight | |
| Width |

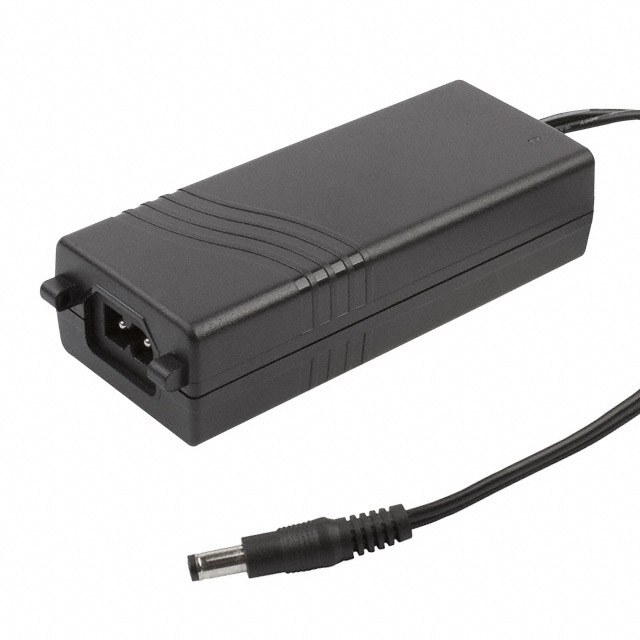

The XP Power AFM30US12C2 is a 30W AC/DC external desktop adapter designed for commercial and medical applications. It operates with an input voltage range of 80-264 VAC and provides a stable 12V output at up to 2.5A.
This adapter meets Energy Efficiency Level V standards and complies with CEC2008 & EISA2007 regulations. It features a compact desktop (Class II) form factor with dimensions of 121.0mm x 50.0mm x 30.8mm. The output connector is a standard Barrel Plug (2.5mm I.D. x 5.5mm O.D. x 11.0mm), and the input connector is an IEC 320-C8 polarized type. A cord is sold separately.
Key electrical specifications include a start-up delay of 3s max, hold-up time of 8ms minimum, and line/load regulation of ±1.0% and 2.5% maximum, respectively. It offers overvoltage, overload, and short-circuit protection. The operating temperature range is 0°C to +60°C.
80-264 VAC.
12V nominal, 30W.
IEC62368-1, IEC60950-1, EN60601-1 (3rd Ed.), UL60601-1, UL60950-1, and EN62368-1.
0°C to +60°C with derating above 40°C.
Barrel plug, 2.5mm I.D. x 5.5mm O.D. x 11.0mm.
Desktop (Class II) with IEC 320-C8 polarized input connector.
Level V.
