| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
14 pcs
|
14 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Interface | |
| Mounting Type | |
| Number of Bits | |
| Number of Channels | |
| Operating Temperature Range | |
| Supplier Device Package |
The AFE7444IABJ is a quad-channel RF-sampling analog front end (AFE) from Texas Instruments, designed for high-performance transmit and receive applications. It integrates four 14-bit 9 GSPS digital-to-analog converters (DACs) and four 14-bit 3 GSPS analog-to-digital converters (ADCs), each supporting up to 800 MHz of signal bandwidth.
The device operates over an RF frequency range of 10 MHz to 6 GHz and includes two digital up-converters (DUCs) per transmit channel and two digital down-converters (DDCs) per receive channel. The interface uses JESD204B with up to 15 Gbps transceivers for high-speed data transfer.

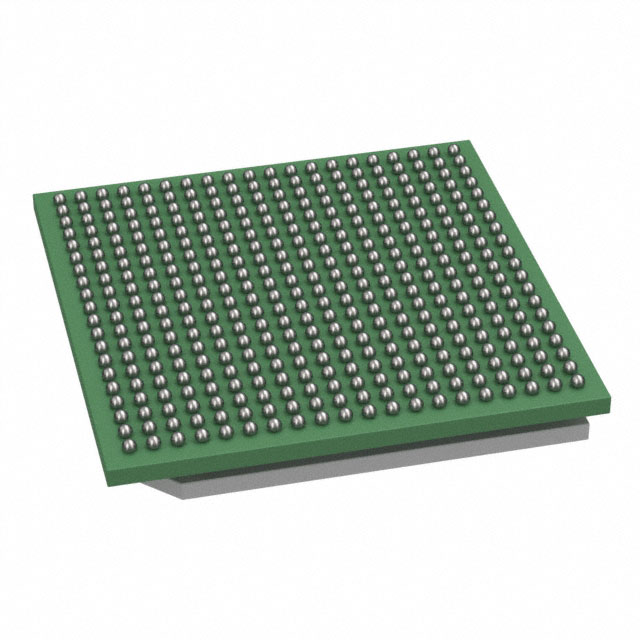

The AFE7444IABJ is housed in a 400-ball FCBGA package (17 mm x 17 mm) with surface mount mounting. It is rated for an operating temperature range of -40°C to 85°C, making it suitable for industrial and commercial environments.
| Qty | Low | High |
|---|---|---|
| 1+ | $2,173.50 | $2,173.50 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AFE7444IABJ has 14-bit resolution for both DAC and ADC.
The operating temperature range is -40 to 85 °C.
The AFE7444IABJ is available in a 400-BFBGA, FCBGA package with a 400-FCBGA (17x17) supplier device package.
The AFE7444IABJ is listed as RoHS3 compliant, though this is unverified.
The DAC sampling rate is 9 GSPS and the ADC sampling rate is 3 GSPS.
The AFE7444IABJ uses a JESD204B interface.
