| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
3,235 pcs
|
3235 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Mounting Type | |
| Number of Bits | |
| Number of Channels | |
| Operating Temperature Range | |
| Supplier Device Package | |
| Supplier Package |
The Texas Instruments AFE5832LPZAV is a low-power, 32-channel Analog Front End (AFE) specifically designed for ultrasound applications. It integrates an LNA, attenuator, LPF, ADC, and CW mixer, offering a comprehensive solution for signal processing.
The device supports a total gain range of 0 dB to 48 dB and features a low-noise amplifier with programmable gain options and low current noise. It includes a programmable attenuator with a range of 0 to 36 dB and a third-order, linear-phase, low-pass filter with a cut-off frequency adjustable from 10 MHz to 25 MHz.
Equipped with 16 ADCs, the AFE5832LPZAV can convert at 12-bit resolution at 80 MSPS or 10-bit resolution at 100 MSPS. It boasts excellent device-to-device gain matching of ±0.5 dB typical and a harmonic distortion level of -55 dBc. The continuous wave (CW) path offers low close-in phase noise and high harmonic suppression.

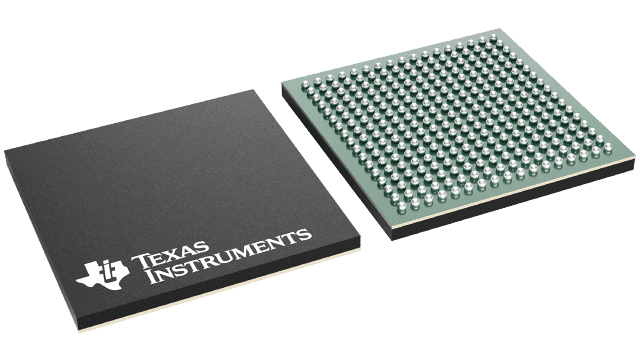

Packaged in a compact 15 mm × 15 mm NFBGA-289 package, the AFE5832LPZAV is suitable for space-constrained designs. It operates with an active supply current of typically 55 mA and an operating temperature range of 0°C to 85°C. The LVDS interface supports speeds up to 1 Gbps.
| Qty | Low | High |
|---|---|---|
| 1+ | $267.55 | $267.55 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AFE5832LPZAV has 32 input channels.
The ADCs in the AFE5832LPZAV offer 12-bit resolution at 80 MSPS or 10-bit resolution at 100 MSPS.
The typical active supply current for the AFE5832LPZAV is 55 mA.
The AFE5832LPZAV operates within a temperature range of 0°C to 85°C.
The AFE5832LPZAV uses an LVDS interface.
The total gain range for the AFE5832LPZAV is 0 dB to 48 dB.
The AFE5832LPZAV is available in a 289-NFBGA (15x15) package and a 289-LFBGA package.
