| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

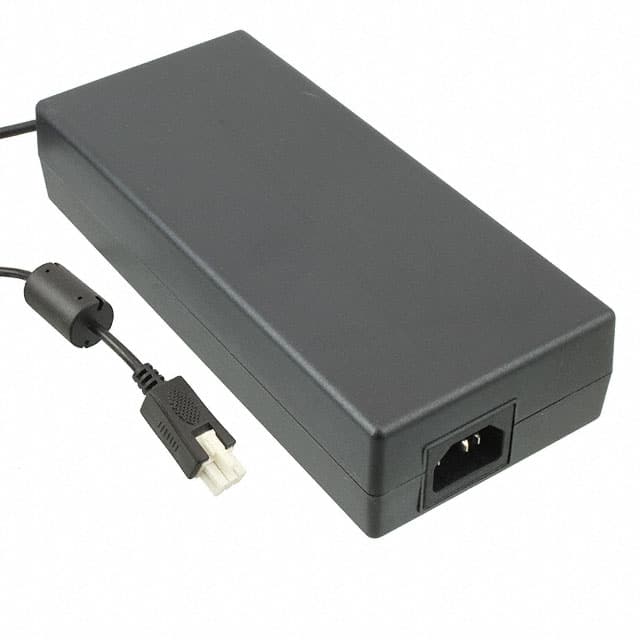

The XP Power AFE220PS48 is a high-density AC-DC power supply designed for commercial ITE applications. This 220W desktop adapter provides a stable 48V output and operates with a wide input voltage range of 90-264 VAC.
It features Level V energy efficiency, ensuring reduced power consumption. The unit includes an IEC 320-C14 input connector and a 6-position rectangular output connector. Safety approvals include CB, TUV, and UL, meeting standards like EN60950-1 and UL60950-1.
Key electrical specifications include a maximum input current of 2.1A at 115 VAC, a typical power factor of 0.95, and protections against overvoltage, overload, and short circuits. The operating temperature range is 0°C to 60°C, with derating at higher temperatures. Its compact dimensions (197.0mm x 88.0mm x 44.0mm) make it suitable for various system integrations.
90-264 VAC at 47-63 Hz.
48V at 4.58A (220W).
0°C to 60°C.
Level V.
EN60950-1, UL60950-1, CSA22.2 No. 60950-1.
Overvoltage, overload, over temperature, and short circuit protection.
Desktop (Class I) with IEC 320-C14 input connector and rectangular 6-position output connector.
