| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Cord Length | |
| Current | |
| Efficiency | |
| Form | |
| Height | |
| Input Connector | |
| Input Frequency | |
| Input Type | |
| Input Voltage | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Operating Temperature | |
| Output Connector | |
| Overload Protection | |
| Power (Watts) | |
| Region Utilized | |
| SVHC Present | |
| Storage Temperature | |
| Temperature Coefficient | |
| Voltage | |
| Width |

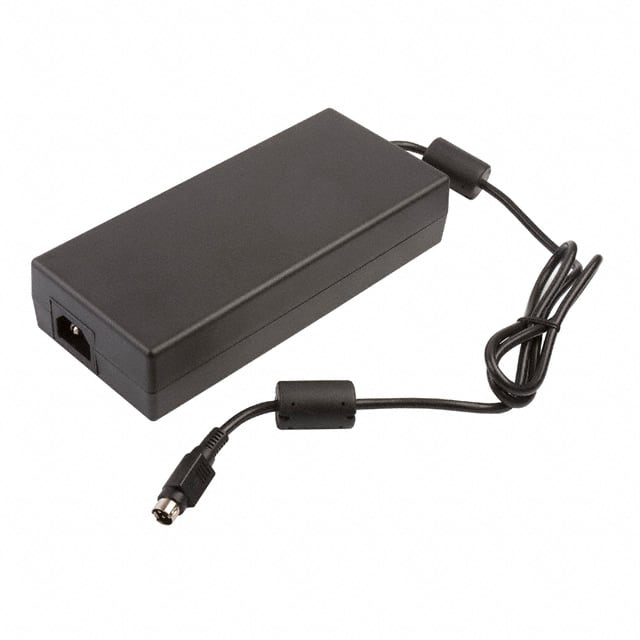

The XP Power AFE220PS12 is an AC/DC desktop power supply designed for commercial ITE applications. It delivers 180 watts of power with a single 12V output.
Key electrical specifications include a wide input voltage range of 90-264 VAC and a frequency of 47-63 Hz. The power factor is typically 0.95 at full load, 230 VAC. It features Level V energy efficiency and a standby power consumption of less than 0.5W.
Protection features include overvoltage, overload, and short circuit protection. The unit operates within a temperature range of 0°C to 60°C and has a high MTBF of over 100,000 hours. The enclosure is a desktop form factor (Class I) with an IEC 320-C14 input connector and a 4-pin Power DIN output connector.
Compliance includes CE marking and approvals from CB, TUV, and UL. It meets emissions standards EN55022 Class B and harmonic current standards EN61000-3-2 Class A.
The AFE220PS12 provides a fixed 12V DC output.
The unit operates from 0°C to 60°C, with power derating applied between 40°C and 60°C.
Yes, it accepts an input voltage range of 90 to 264 VAC at 47 to 63 Hz.
It utilizes an IEC 320-C14 connector for AC input and a 4-pin Power DIN connector for DC output.
The adapter offers 3000 VAC isolation between the input and output, plus 1500 VAC from input to ground.
