| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
1 pcs
|
1 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Connector Type | |
| Data Rate | |
| Mounting Type | |
| Operating Temperature | |
| Voltage | |
| Wavelength |

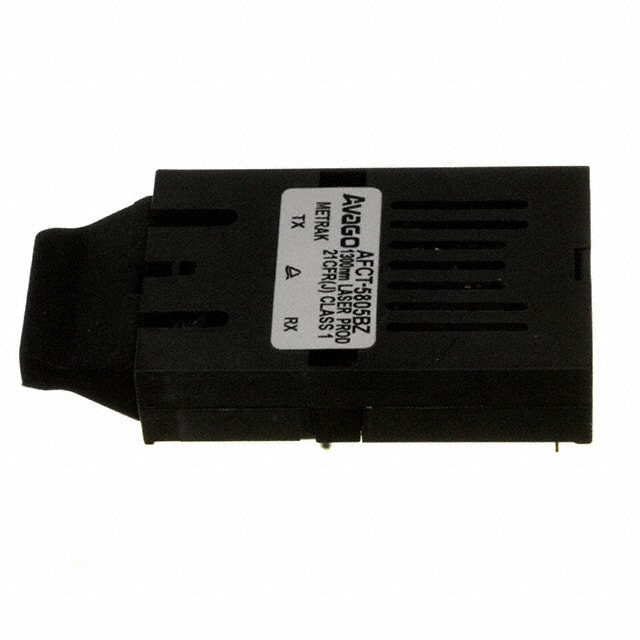

This AFCT-5805BZ transceiver module from Foxconn OE Technologies Singapore Pte. LTD is designed for serial optical data communications at 155 Mb/s. It supports intermediate reach links and operates with a +3.3 V or +5.0 V input voltage. The module utilizes a 1300 nm FP laser transmitter and an InGaAs PIN photodiode receiver.
Key specifications include a data rate of 155 Mbps and a wavelength of 1300 nm. It is equipped with an integral duplex SC connector receptacle. The transceiver is specified for an operating temperature range of -40°C to +85°C and features a Through Hole mounting type.
Applications include ATM 155 Mb/s links for LAN backbone switches and routers, WAN core, edge and access switches and routers, and add/drop multiplexers. It is also suitable for SONET OC-3/SDH STM-1 (S-1.1) interconnections.
The transceiver is compliant with T1.646-1995 Broadband ISDN and T1E1.2/98-011R1 SONET network to customer installation interface standards, as well as T1.105.06 SONET physical layer specifications. It is RoHS3 compliant and has an MSL of 1.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AFCT-5805BZ transceiver supports a data rate of 155 Mb/s.
The AFCT-5805BZ operates at 3.3V or 5V.
The transceiver operates at a wavelength of 1300 nm.
The AFCT-5805BZ features an integral duplex SC connector receptacle.
The AFCT-5805BZ is specified for operation between -40°C and +85°C.
The AFCT-5805BZ is RoHS3 Compliant.
The Moisture Sensitivity Level (MSL) is 1 Unlimited.
