| Category | |
| Manufacturer Name | |
| Applications | |
| Approval Agency | |
| Current | |
| Dimensions | |
| Efficiency | |
| Features | |
| Frequency | |
| Height | |
| Isolation | |
| Length | |
| Mounting Type | |
| No Load Power Consumption | |
| Number of Outputs | |
| Operating Temperature | |
| Output Voltage | |
| Power (Watts) | |
| SVHC Present | |
| Standard Number | |
| Storage Temperature | |
| Temperature Coefficient | |
| Type | |
| Voltage | |
| Weight | |
| Width |

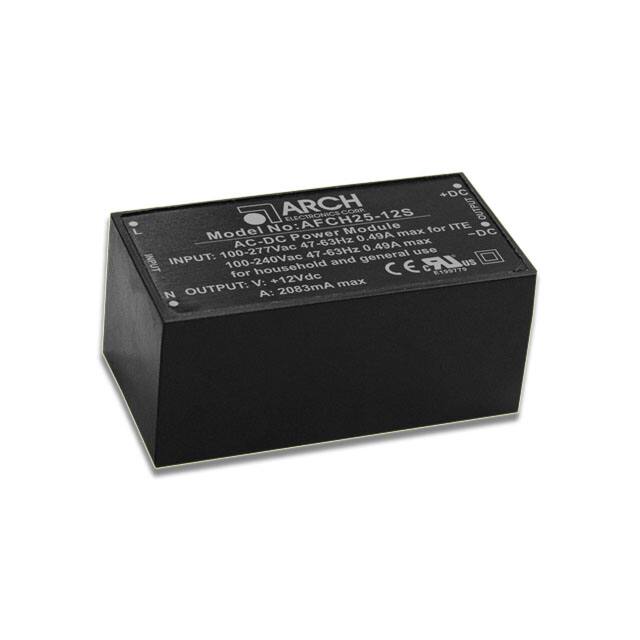

The ARCH AFCH25-12S is an enclosed AC/DC power module designed for various applications, including household appliances and ITE commercial equipment. It delivers a 25W maximum output with a 12V DC voltage at 2.083A.
Key electrical specifications include a wide universal input range of 90-305VAC or 120-430VDC and a frequency range of 47-440Hz. The module boasts a high efficiency of up to 88% and features protections such as over-power, over-voltage, and short-circuit.
With its compact dimensions of 52.5 x 27.5 x 23.5 mm and through-hole mounting, the AFCH25-12S is suitable for space-constrained designs. It operates within an ambient temperature range of -40°C to +70°C and meets safety approvals from CB, CE, and cURus.
This power module is designed for reliability, with an MTBF of over 400,000 hours at 25°C and compliance with EMC standards EN 55032 class B and EN 55035.
The output voltage is 12V DC.
The maximum output power is 25W.
The input voltage range is 90-305VAC or 120-430VDC.
The efficiency is up to 88%.
The dimensions are 52.5 x 27.5 x 23.5 mm.
The operating temperature range is -40°C to +70°C.
It complies with UL / IEC / EN 62368-1, IEC / EN 60950-1, IEC / EN 60335-1, and IEC / EN 61558-2-16.
