| Distributor | Stock | Pricing | MOQ | PKG | Lead Time | Date Code | On Order Quantity | On Order Delivery | |
|---|---|---|---|---|---|---|---|---|---|
|
100 pcs
|
100 pcs | On Request | 1 | On Request | On Request | On Request | On Request | On Request |
| Category | |
| Manufacturer Name | |
| Applications | |
| Connector Type | |
| Data Rate | |
| Data Rate (@ FC-PI -4 800-M 5-SN-S, 800-M 6-SN-S and 800-M 5 E-SN-I) | |
| Data Rate (@ FC-PI 200-M 5-SN-I , 200-M 6-SN-I and 200 M 5 E-SN-I) | |
| Data Rate (@ FC-PI 400-M 5-SN-I , 400-M 6-SN-I and 400 M 5 E-SN-I) | |
| Diagnostic Features | |
| Laser Safety | |
| Link Length (@ 2.125 GBd, 50 um OM 2) | |
| Link Length (@ 2.125 GBd, 50 um OM 3) | |
| Link Length (@ 2.125 GBd, 62.5 um OM 1) | |
| Link Length (@ 4.25 GBd, 50 um OM 2) | |
| Link Length (@ 4.25 GBd, 50 um OM 3) | |
| Link Length (@ 4.25 GBd, 50 um OM 4) | |
| Link Length (@ 4.25 GBd, 62.5 um OM 1) | |
| Link Length (@ 8.5 GBd, 50 um OM 2) | |
| Link Length (@ 8.5 GBd, 50 um OM 3) | |
| Link Length (@ 8.5 GBd, 50 um OM 4) | |
| Link Length (@ 8.5 GBd, 62.5 um OM 1) | |
| Mounting Type | |
| Operating Temperature | |
| Operating Voltage (Nominal) | |
| Storage Temperature | |
| Tape & Reel | |
| Voltage | |
| Wavelength |

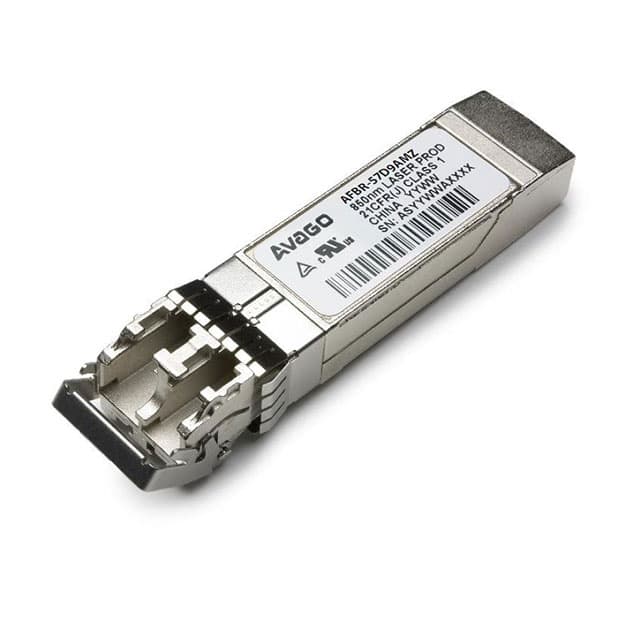

The Broadcom Limited AFBR-57D9AMZ is a multi-rate 850nm SFP optical transceiver designed for high-speed serial links over multimode optical fiber. It supports signaling rates up to 8.5 GBd, including 8.5/4.25/2.125 GBd Fibre Channel specifications without the need for Rate Select.
This transceiver complies with SFP Multi Source Agreement (MSA) mechanical and electrical specifications. It features an LC Duplex optical connector interface and utilizes an 850 nm Vertical Cavity Surface Emitting Laser (VCSEL) source. The device operates within a wide temperature range of -10°C to 85°C with a supply voltage of 3.3 V ± 10%.
Diagnostic features are provided per SFF-8472, enabling real-time monitoring of transmitted and received optical power, laser bias current, temperature, and supply voltage. The AFBR-57D9AMZ is also compliant with RoHS directives and is IEC 60825-1 Class 1/CDRH Class 1 laser eye safe. Its pluggable, SFP mounting type makes it suitable for various Fibre Channel applications.
| Qty | Low | High |
|---|---|---|
| 1+ | $0.99 | $0.99 |
Estimated market price range - modelled values for guidance only, not live distributor offers.
The AFBR-57D9AMZ supports 8.5 GBd, 4.25 GBd, and 2.125 GBd Fibre Channel operations.
The transceiver uses an 850 nm wavelength.
The operating voltage is 3.3 V with a tolerance of ±10%.
The AFBR-57D9AMZ operates between -10°C and 85°C.
It features an LC Duplex optical connector interface.
Yes, it provides real-time monitoring of transmitted optical power, received optical power, laser bias current, temperature, and supply voltage per SFF-8472.
Yes, the AFBR-57D9AMZ is RoHS3 Compliant.
